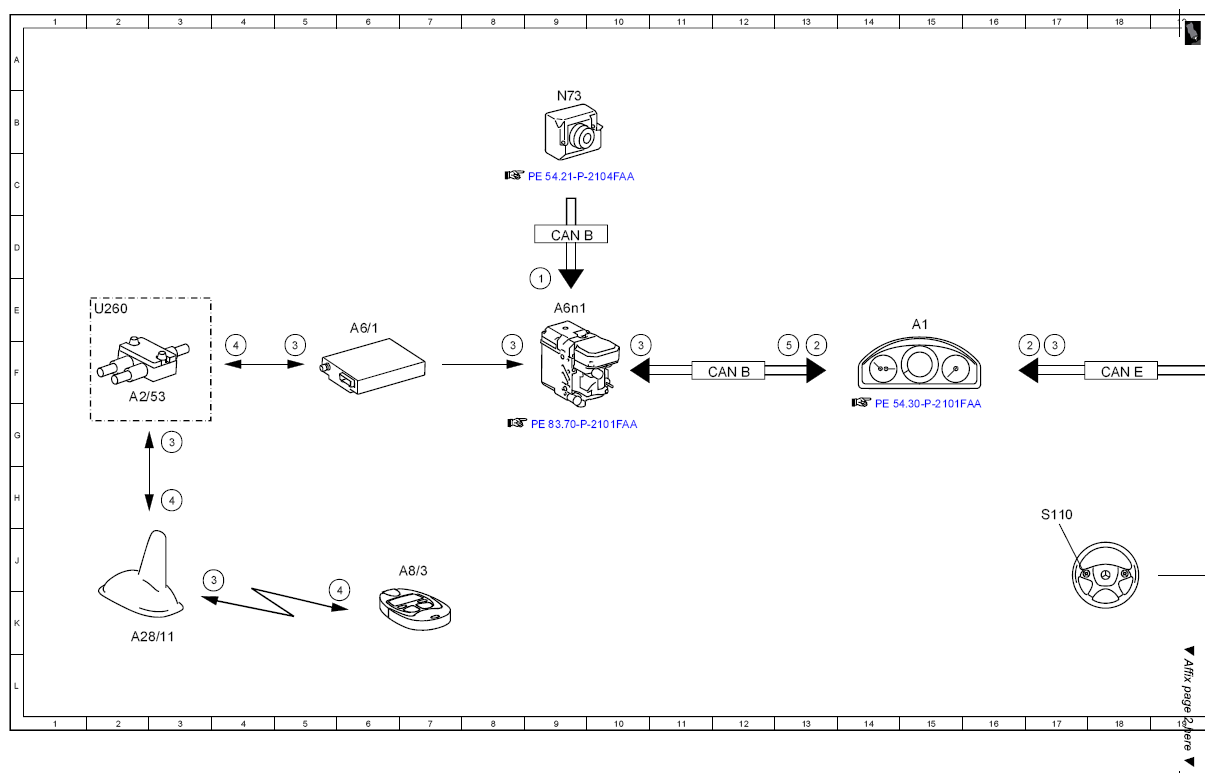

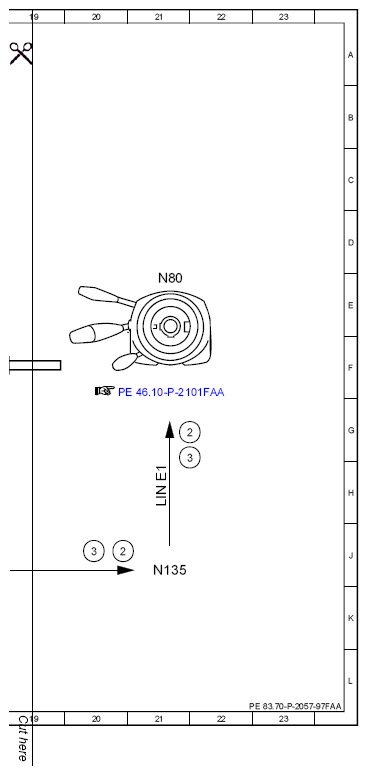

Electrical function schematic, programming departure time - PE83.70-P-2057-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Clamp 15R, Status | 9E |
| 2 | Display Menu departure time requirement | 17F |
| 2 | Display Menu departure time requirement | 21G |
| 2 | Display Menu departure time requirement | 13F |
| 2 | Display Menu departure time requirement | 20J |
| 3 | Setting / activation departure times, signal | 3G |
| 3 | Setting / activation departure times, signal | 5F |
| 3 | Setting / activation departure times, signal | 8F |
| 3 | Setting / activation departure times, signal | 10F |
| 3 | Setting / activation departure times, signal | 17F |
| 3 | Setting / activation departure times, signal | 21H |
| 3 | Setting / activation departure times, signal | 20J |
| 3 | Setting / activation departure times, signal | |
| 4 | Receiver remote control parking heater, message | 3H |
| 4 | Receiver remote control parking heater, message | 6K |
| 4 | Receiver remote control parking heater, message | 4F |
| 5 | Capitalized departure time message | 13F |
| A1 | Instrument cluster | 15E |
| A2/53 | Combiner, mobile phone and remote control parking heater | 2F |
| A28/11 | Combination antenna | 2K |
| A6/1 | Receiver, remote control parking heater | 6E |
| A6n1 | Control unit, heater | 9E |
| A8/3 | Transmitter, remote control parking heater | 7J |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 9D |
| CAN E | LG CAN | 18F |
| LIN E1 | Steering LIN | 21H |
| N135 | Steering wheel electronics | 21J |
| N73 | Control unit, electronic ignition | 9B |
| N80 | Controller, casing pipe module | 21E |
| S110 | Key group, multifunction steering wheel, left | 17H |
| U260 | Valid for convenience telephony | 2E |
