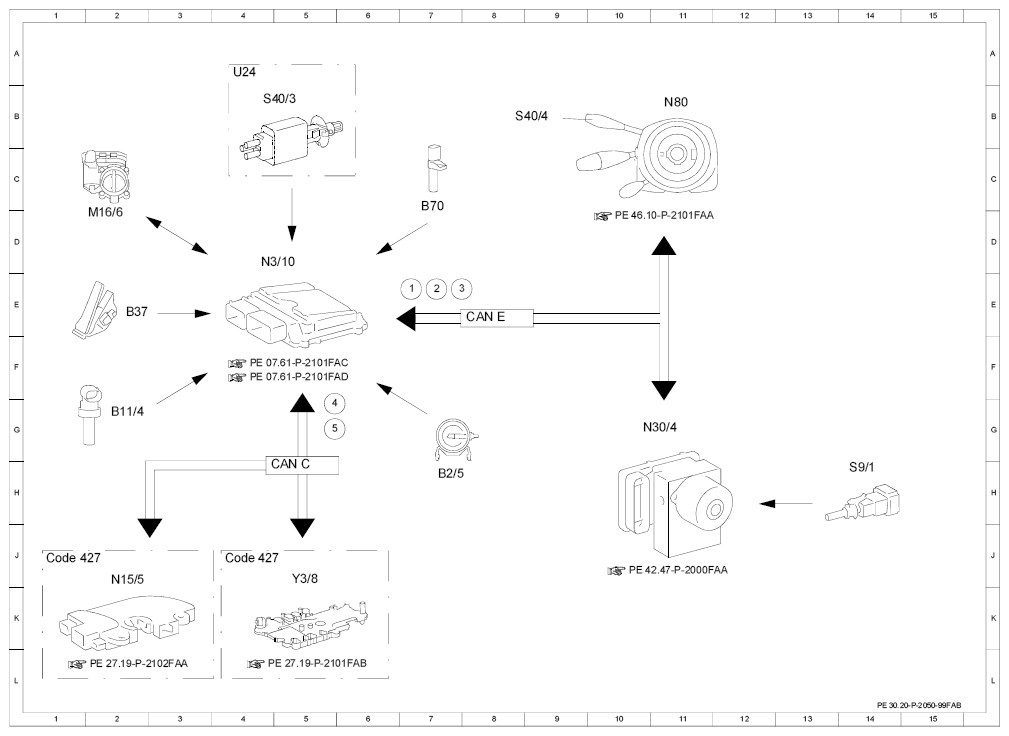

Electrical function schematic for electronic accelerator - PE30.20-P-2050-99FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 7E |
| 2 | Engine torque, reduce request | 7E |
| 3 | Cruise control, request | 7E |
| 4 | Shift stage, status | 5G |
| 5 | Reverse gear, status | 5G |
| B11/4 | Coolant temperature sensor | 2G |
| B2/5 | Hot film mass air flow sensor | 7H |
| B37 | Accelerator pedal sensor | 2E |
| B70 | Crankshaft Hall sensor | 7D |
| CAN C | Drive train CAN | 4H |
| CAN E | Chassis CAN | 8E |
| Code 427 | 7-speed automatic transmission | 1 J |
| Code 427 | 7-speed automatic transmission | 4J |
| M16/6 | Throttle valve actuator | 2D |
| N15/5 | Electronic selector lever module control unit | 2K |
| N3/10 | ME-SFI [ME] control unit | 4D |
| N30/4 | Electronic Stability Program control unit | 10G |
| N80 | Steering column module control unit | 11 B |
| S40/3 | Clutch pedal switch | 4B |
| S40/4 | Cruise control lever | 8B |
| S9/1 | Stop lamp switch | 14H |
| U24 | Valid for manual transmission | 4A |
| Y3/8 | Fully integrated transmission control unit | 5K |
