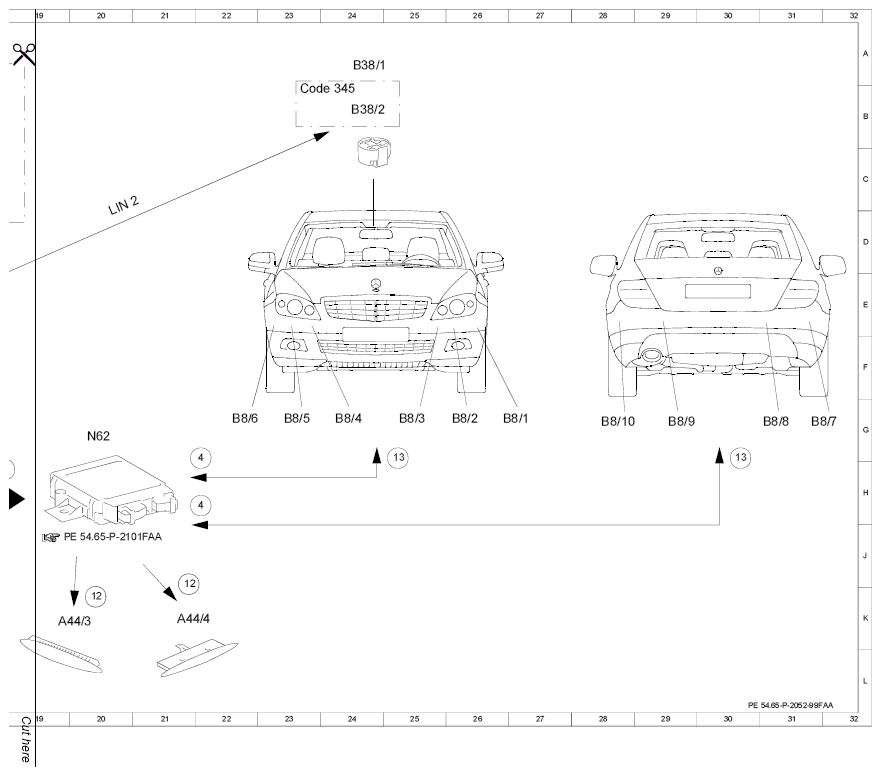

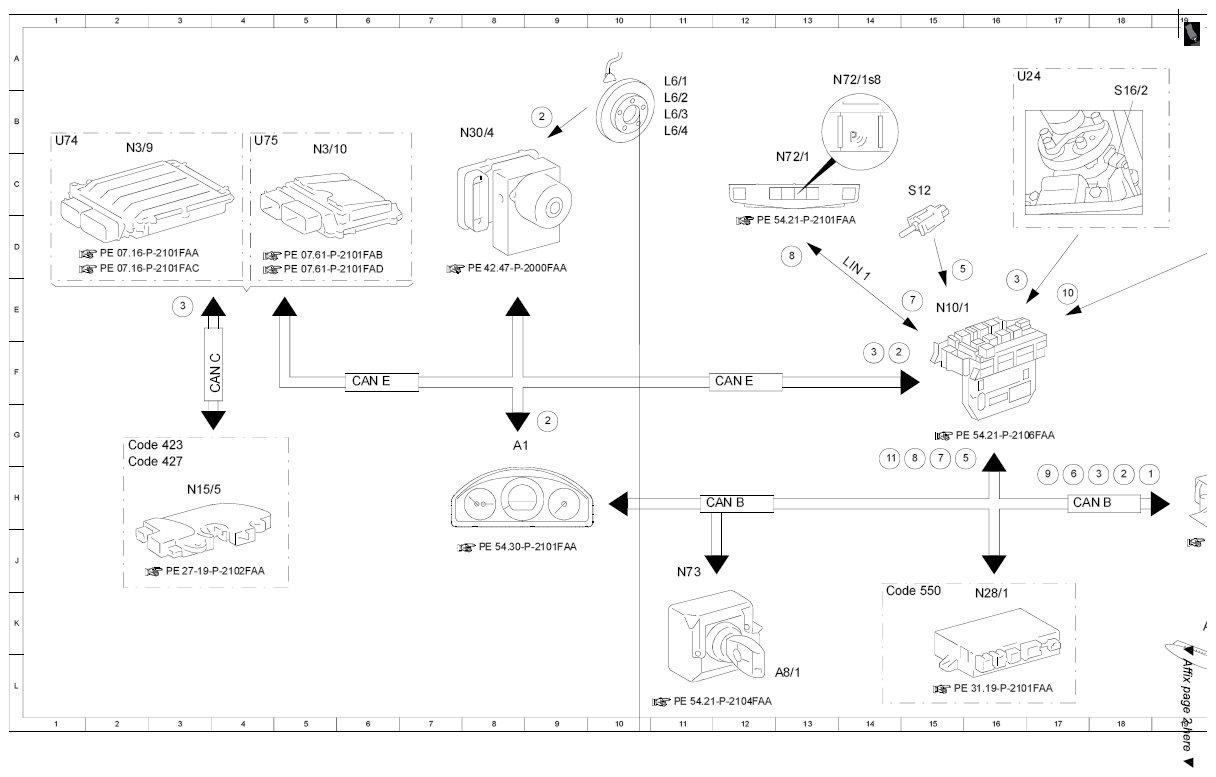

Electrical function schematic, Parktronic, driving mode - PE54.65-P-2052-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status ON | 18 H |
| 10 | Ambient brightness, signal | 17 E |
| 11 | "Night", signal | 14 H |
| 12 | PARKTRONIC warning indicator, actuation | 20 K |
| 12 | PARKTRONIC warning indicator, actuation | 21 K |
| 13 | PARKTRONIC distance sensors, actuation | 25 H |
| 13 | PARKTRONIC distance sensors, actuation | 30 H |
| 2 | Wheel speed, signal | 9 B |
| 2 | Wheel speed, signal | 9 G |
| 2 | Wheel speed, signal | 14 F |
| 2 | Wheel speed, signal | 18 H |
| 3 | Reverse gear, status | 3 E |
| 3 | Reverse gear, status | 14 F |
| 3 | Reverse gear, status | 16 E |
| 3 | Reverse gear, status | 18 H |
| 4 | PARKTRONIC distance sensors, signal | 22 H |
| 5 | Parking brake indicator switch, status | 15 D |
| 5 | Parking brake indicator switch, status | 15 H |
| 6 | Vehicle speed, signal | 17 H |
| 7 | PARKTRONIC button, status | 15 E |
| 7 | PARKTRONIC button, status | 15 H |
| 8 | PARKTRONIC status indication, actuation | 13 D |
| 8 | PARKTRONIC status indication, actuation | 15 H |
| 9 | Trailer recognition, status | 17 H |
| A1 | Instrument cluster | 8 G |
| A44/3 | Rear Parktronic warning indicator | 19 K |
| A44/4 | Instrument panel PARKTRONIC warning indicator | 21 K |
| A8/1 | Transmitter key | 12 L |
| B38/1 | Light sensor | 24 A |
| B38/2 | Rain/light sensor | 24 B |
| B8/1 | Outer left front PARKTRONIC distance sensor | 26 G |
| B8/10 | Outer left rear PARKTRONIC distance sensor | 28 G |
| B8/2 | Center left front PARKTRONIC distance sensor | 26 G |
| B8/3 | Inner left front PARKTRONIC distance sensor | 25 G |
| B8/4 | Inner right front PARKTRONIC distance sensor | 24 G |
| B8/5 | Center right front PARKTRONIC distance sensor | 23 G |
| B8/6 | Outer right front PARKTRONIC distance sensor | 22 G |
| B8/7 | Outer right rear PARKTRONIC distance sensor | 31 G |
| B8/8 | Inner right rear PARKTRONIC distance sensor | 31 G |
| B8/9 | Inner left rear PARKTRONIC distance sensor | 29 G |
| CAN B | Interior CAN | 11 H |
| CAN B | Interior CAN | 17 H |
| CAN C | Drive train CAN | 4 F |
| CAN E | Chassis CAN | 6 F |
| CAN E | Chassis CAN | 11 F |
| Code 345 | Rain sensor | 23 B |
| Code 423 | 5-speed automatic transmission | 2 G |
| Code 427 | 7-speed automatic transmission | 2 H |
| Code 550 | Trailer hitch | 14 K |
| L6/1 | Left front axle RPM sensor | 11 B |
| L6/2 | Right front axle RPM sensor | 11 B |
| L6/3 | Left rear axle RPM sensor | 11 B |
| L6/4 | Right rear axle RPM sensor | 11 B |
| LIN 1 | Instrument panel LIN | 14 D |
| LIN 2 | Wiper/inside rearview mirror LIN | 20 D |
| N10/1 | Front SAM control unit with fuse and relay module | 15 E |
| N15/5 | Electronic selector lever module control unit | 3 H |
| N28/1 | Trailer recognition control unit | 16 K |
| N3/10 | ME-SFI [ME] control unit | 5 C |
| N3/9 | CDI control unit | 2 C |
| N30/4 | Electronic Stability Program control unit | 7 B |
| N62 | PARKTRONIC control unit | 20 G |
| N72/1 | Upper control panel control unit | 12 C |
| N72/1s8 | PARKTRONIC button | 13 A |
| N73 | Electronic ignition switch control unit | 11 J |
| S12 | Parking brake indicator switch | 15 C |
| S16/2 | Backup lamp switch | 18 B |
| U24 | Valid for manual transmission | 16 A |
| U74 | Valid for diesel engines | 1 B |
| U75 | Valid for gasoline engines | 4 B |
