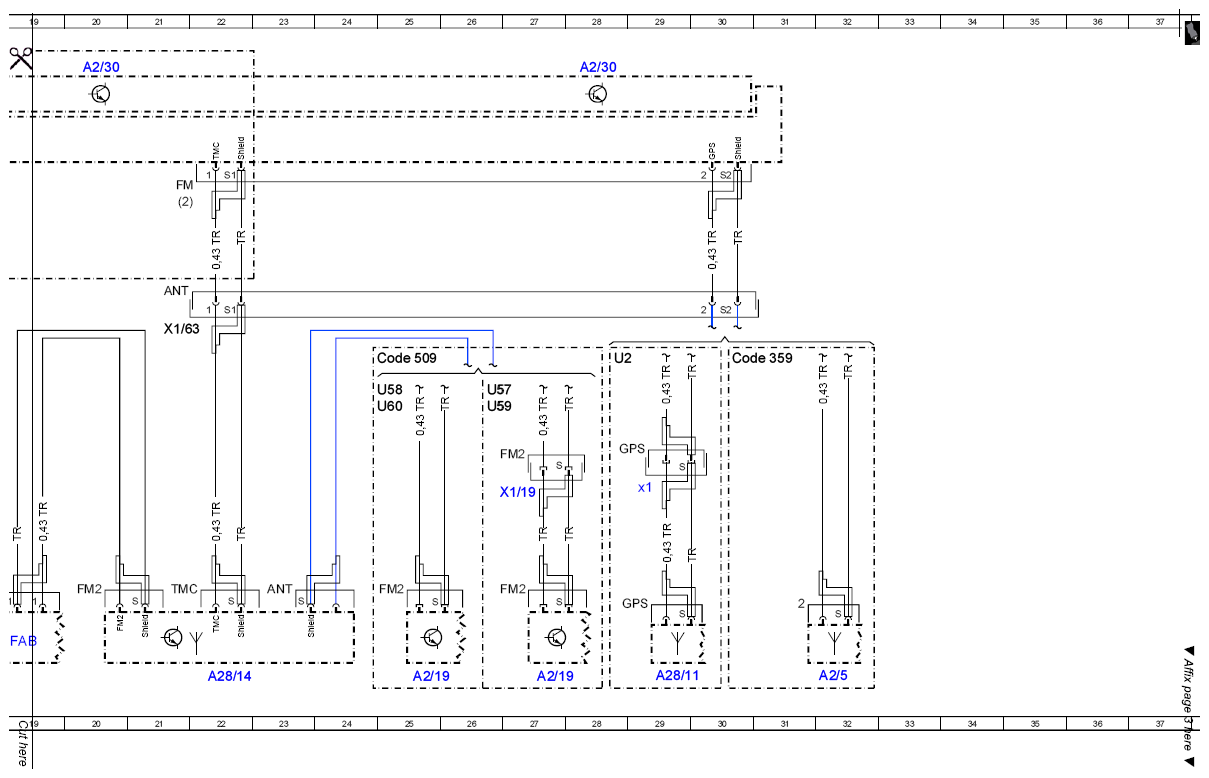

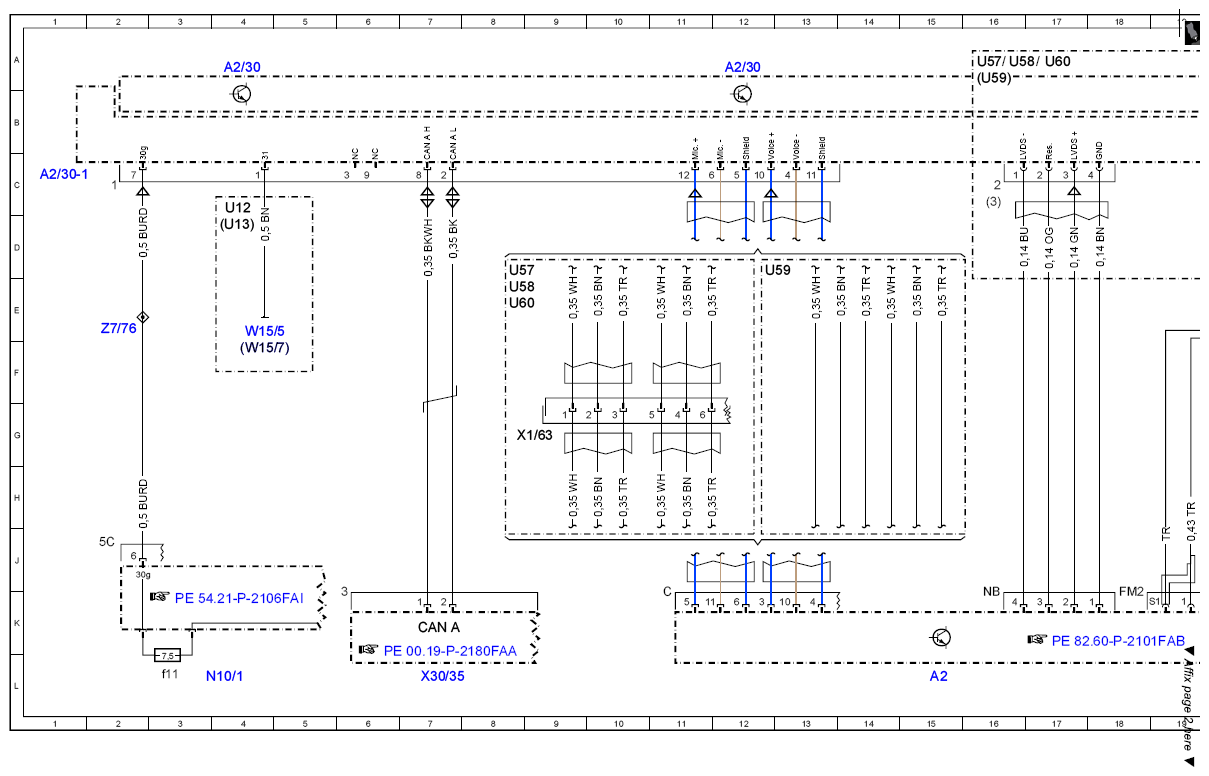

Wiring diagram of navigation system - PE82.85-P-2005-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

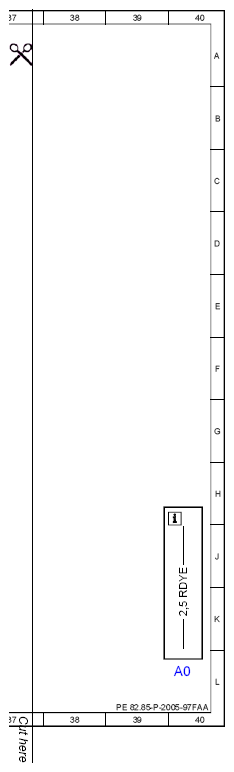

| A0 | Color code key | 40L |
| A2 | Radio | 15L |
| A2/19 | Rear window antenna FM antenna amplifier | 25L |
| A2/19 | Rear window antenna FM antenna amplifier | 27L |
| A2/30 | Navigation module | 4A |
| A2/30 | Navigation module | 12A |
| A2/30 | Navigation module | 20A |
| A2/30 | Navigation module | 28A |
| A2/30-1 | Cradle for navigation module | 1C |
| A2/5 | Global positioning system antenna splitter | 32L |
| A28/11 | Multifunction antenna | 29L |
| A28/11x1 | Multifunction antenna electrical connector | 29H |
| A28/14 | Frequency modulation antenna splitter 2 (FM2) | 22L |
| CAN A | Telematics CAN | 7K |
| Code 359 | TELEAID emergency call system | 30F |
| Code 509 | Navigation module | 24F |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/1f11 | Fuse 11 | 3L |
| U12 | Valid for left-hand drive vehicles | 4C |
| U13 | Valid for right-hand drive vehicles | 4D |
| U2 | Valid for all except USA | 28F |
| U57 | Valid for model 204.2 | 8D |
| U57 | Valid for model 204.2 | 16A |
| U57 | Valid for model 204.2 | 26F |
| U58 | Valid for model 204.0 | 8E |
| U58 | Valid for model 204.0 | 16A |
| U58 | Valid for model 204.0 | 24F |
| U59 | Valid for model 204.9 | 12D |
| U59 | Valid for model 204.9 | 16A |
| U59 | Valid for model 204.9 | 26G |
| U60 | Valid for model 204.3 | 8E |
| U60 | Valid for model 204.3 | 17A |
| U60 | Valid for model 204.3 | 24G |
| W15/5 | Left front footwell ground point | 4E |
| W15/7 | Right front footwell ground point | 4F |
| X1/19 | AM/FM antenna amplifier electrical connector | 27H |
| X1/63 | Navigation processor electrical connector | 9G |
| X1/63 | Navigation processor electrical connector | 21E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7L |
| Z7/76 | Cockpit circuit 30G connector sleeve | 2E |
