Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97FAC

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A0 Color code key 80L
A16/1 Cylinder 3+4 knock sensor 2L
A16/2 Left knock sensor 1L
A9 Refrigerant compressor 76L
B11/4 Coolant temperature sensor 18L
B2/5 Hot film mass air flow sensor 5L
B2/5b1 Intake air temperature sensor 5L
B28 Pressure sensor 14L
B28/10 Right intake manifold tumble flap position sensor 15L
B28/9 Left intake manifold tumble flap position sensor 17L
B6/4 Left intake camshaft Hall sensor 10L
B6/5 Right intake camshaft Hall sensor 7L
B6/6 Left exhaust camshaft Hall sensor 12L
B6/7 Right exhaust camshaft Hall sensor 9L
B70 Crankshaft Hall sensor 20L
C4/1 Radio interference suppression capacitor 1 50L
C4/2 Radio interference suppression capacitor 2 51L
G3/3 Left oxygen sensor upstream of catalytic converter 31L
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 30J
G3/4 Right oxygen sensor upstream of catalytic converter 28L
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 27J
G3/5 Left oxygen sensor downstream of catalytic converter 25L
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 24J
G3/6 Right oxygen sensor downstream of catalytic converter 23L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 21J
LIN C1 Drive train LIN 79B
M16/6 Throttle valve actuator 65L
M16/6m1 Actuator motor 65K
M16/6r1 Actual value potentiometer 1 66K
M16/6r2 Actual value potentiometer 2 66K
M16/6r3 Sliding contact 1 actual value potentiometer 65K
M16/6r4 Sliding contact 2 actual value potentiometer 64K
N10/1 Front SAM control unit with fuse and relay module 74L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 29A
N3/10 ME-SFI [ME] control unit 37A
N3/10 ME-SFI [ME] control unit 45A
N3/10 ME-SFI [ME] control unit 53A
N3/10 ME-SFI [ME] control unit 62A
N3/10 ME-SFI [ME] control unit 69A
N3/10 ME-SFI [ME] control unit 77A
R4 Spark plugs 44L
R4 Spark plugs 48L
R4 Spark plugs 46L
R4 Spark plugs 53L
R4 Spark plugs 57L
R4 Spark plugs 55L
S43 Oil level check switch 3L
T1/1 Cylinder 1 ignition coil 43K
T1/2 Cylinder 2 ignition coil 45K
T1/3 Cylinder 3 ignition coil 47K
T1/4 Cylinder 4 ignition coil 52K
T1/5 Cylinder 5 ignition coil 54K
T1/6 Cylinder 6 ignition coil 56K
U12 Valid for left-hand drive vehicles 68H
U13 Valid for right-hand drive vehicles 67H
W11w1 Left cylinder bank ground point (engine) 54G
W11w1 Left cylinder bank ground point (engine) 51G
W11w2 Right cylinder bank ground point (engine) 46G
W11w2 Right cylinder bank ground point (engine) 50G
W16/5 Left major assembly compartment electronics ground point 68L
W16/6 Right major assembly compartment ground point 68L
X205 Tumble flap and intake manifold switchover valves electrical connector 59G
X26 Interior and engine wiring harness electrical connector 68G
Y110 Coolant thermostat 58L
Y16/2 Heating system shutoff valve 63L
Y22/6 Intake manifold switchover valve 61L
Y22/9 Intake manifold tumble flap switchover valve 59L
Y32 Air pump switchover valve 62L
Y49/4 Left intake camshaft solenoid 42L
Y49/5 Right intake camshaft solenoid 33L
Y49/6 Left exhaust camshaft solenoid 41L
Y49/7 Right exhaust camshaft solenoid 32L
Y62/1 Cylinder 1 injection valve 37L
Y62/2 Cylinder 2 injection valve 36L
Y62/3 Cylinder 3 injection valve 35L
Y62/4 Cylinder 4 injection valve 40L
Y62/5 Cylinder 5 injection valve 38L
Y62/6 Cylinder 6 injection valve 39L
Z5z2 Connector sleeve in wiring harness 16G
Z6/26 Sensor voltage supply connector sleeve 22G
Z6z1 Circuit 31 connector sleeve 45E
Z6z2 Circuit 31 connector sleeve 55E
Z6z2 Circuit 31 connector sleeve 68E
Z7/35z1 Circuit 87 M1e connector sleeve 41G
Z7/35z2 Circuit 87 M1e connector sleeve 11G
Z7/35z2 Circuit 87 M1e connector sleeve 41E
Z7/35z2 Circuit 87 M1e connector sleeve 53E
Z7/35z2 Circuit 87 M1e connector sleeve 69E
Z7/36z1 Circuit 87 M2e connector sleeve 20L
Z7/36z1 Circuit 87 M2e connector sleeve 24L
Z7/36z1 Circuit 87 M2e connector sleeve 29G
Z7/36z1 Circuit 87 M2e connector sleeve 62G
Z7/36z2 Circuit 87 M2e connector sleeve 62E
Z7/36z2 Circuit 87 M2e connector sleeve 70E
Z7/38z1 Circuit 87 M1i connector sleeve 6G
Z7/38z1 Circuit 87 M1i connector sleeve 34G
Z7/38z2 Circuit 87 M1i connector sleeve 34E
Z7/38z2 Circuit 87 M1i connector sleeve 48E
Z7/38z2 Circuit 87 M1i connector sleeve 71E
Z7/43 Sensor ground connector sleeve 8G
Z7/43 Sensor ground connector sleeve 15G
Z7/44 Sensor ground connector sleeve 10G
Z7/44 Sensor ground connector sleeve 18G

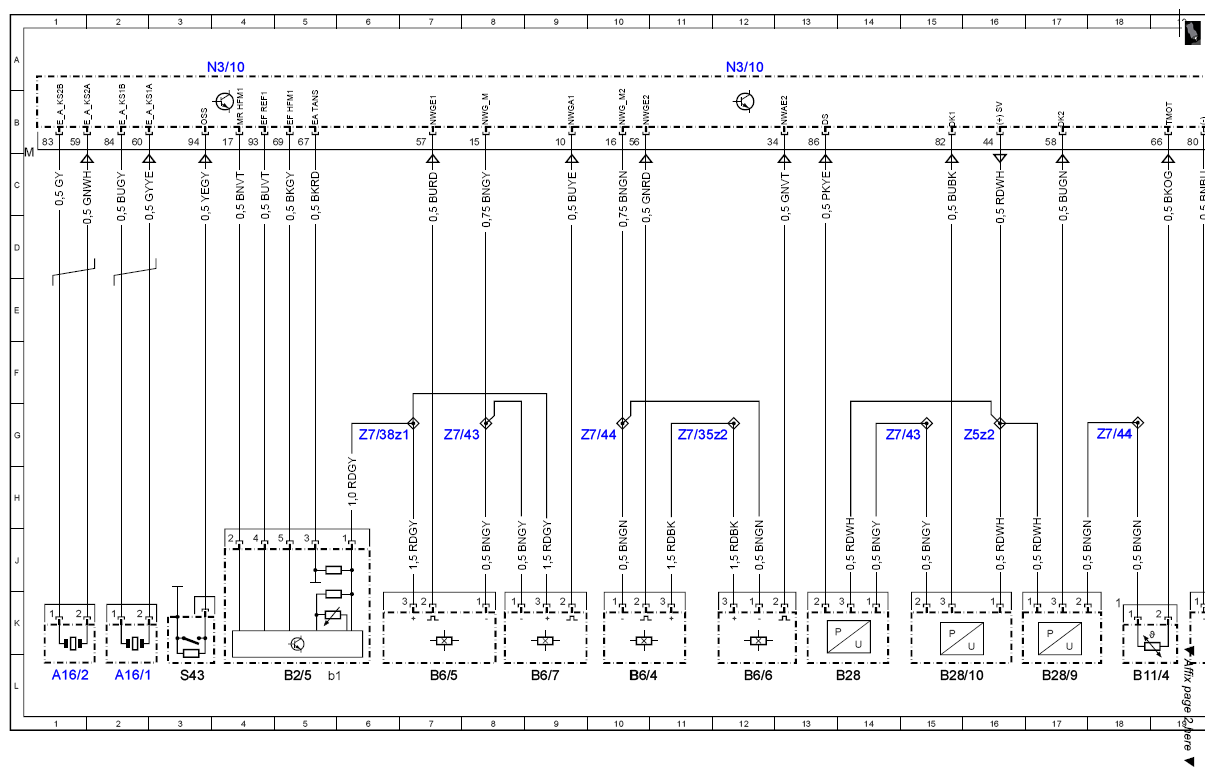

Fig 1: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (1 Of 5)
G07522601Courtesy of MERCEDES-BENZ USA

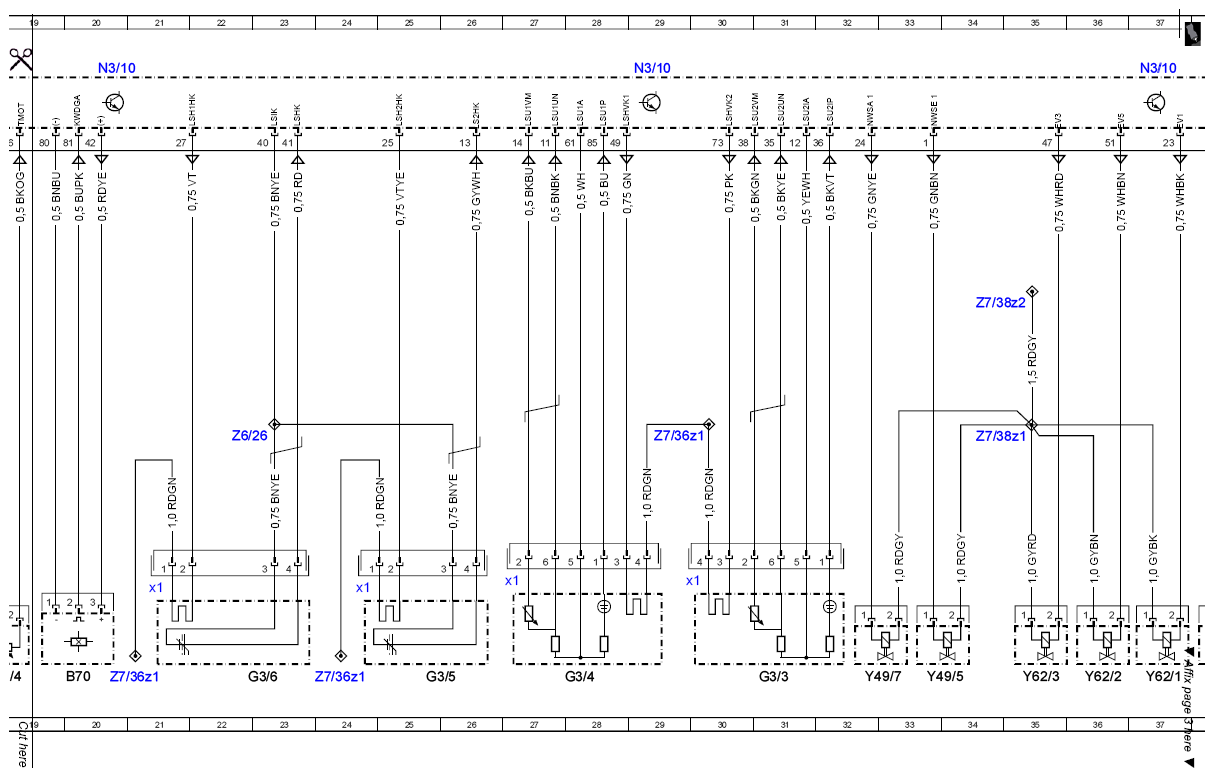

Fig 2: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (2 Of 5)
G07522602Courtesy of MERCEDES-BENZ USA

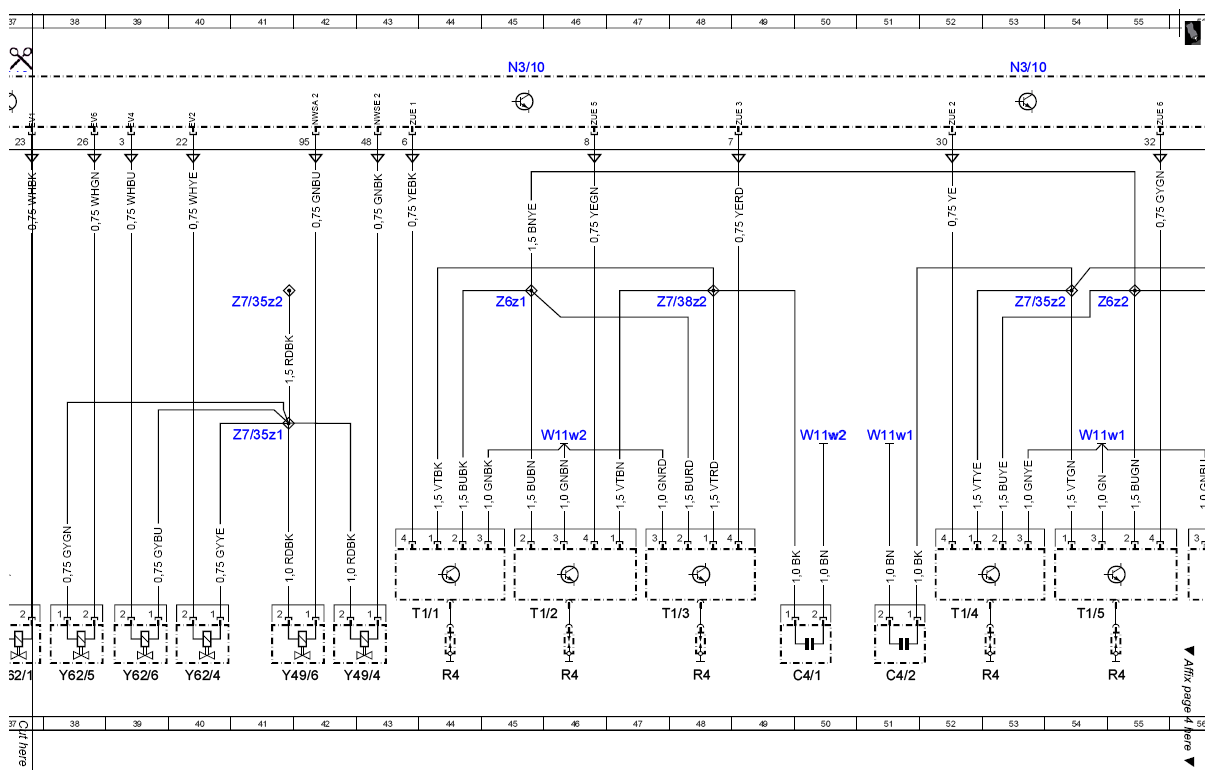

Fig 3: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (3 Of 5)
G07522603Courtesy of MERCEDES-BENZ USA

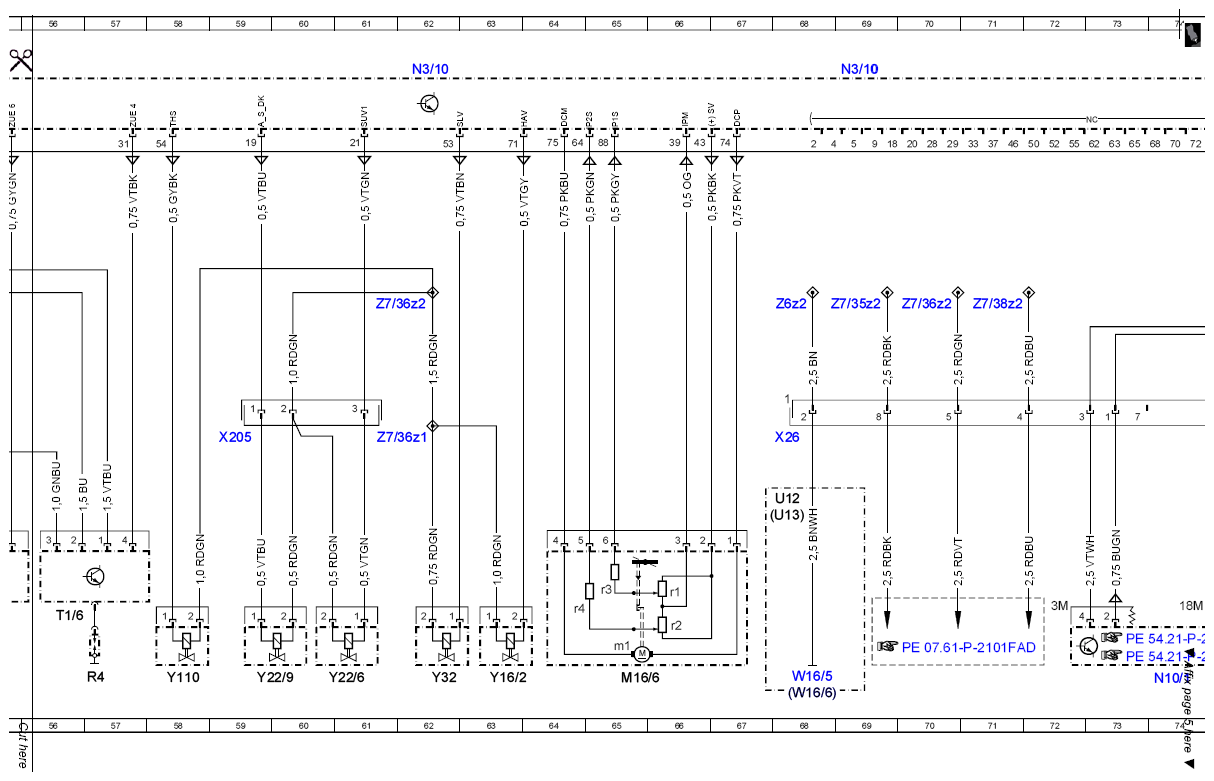

Fig 4: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (4 Of 5)
G07522604Courtesy of MERCEDES-BENZ USA

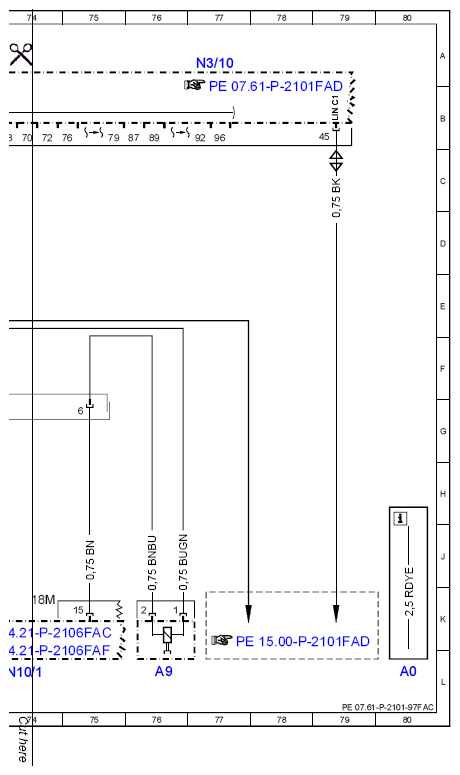

Fig 5: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (5 Of 5)
G07522605Courtesy of MERCEDES-BENZ USA
