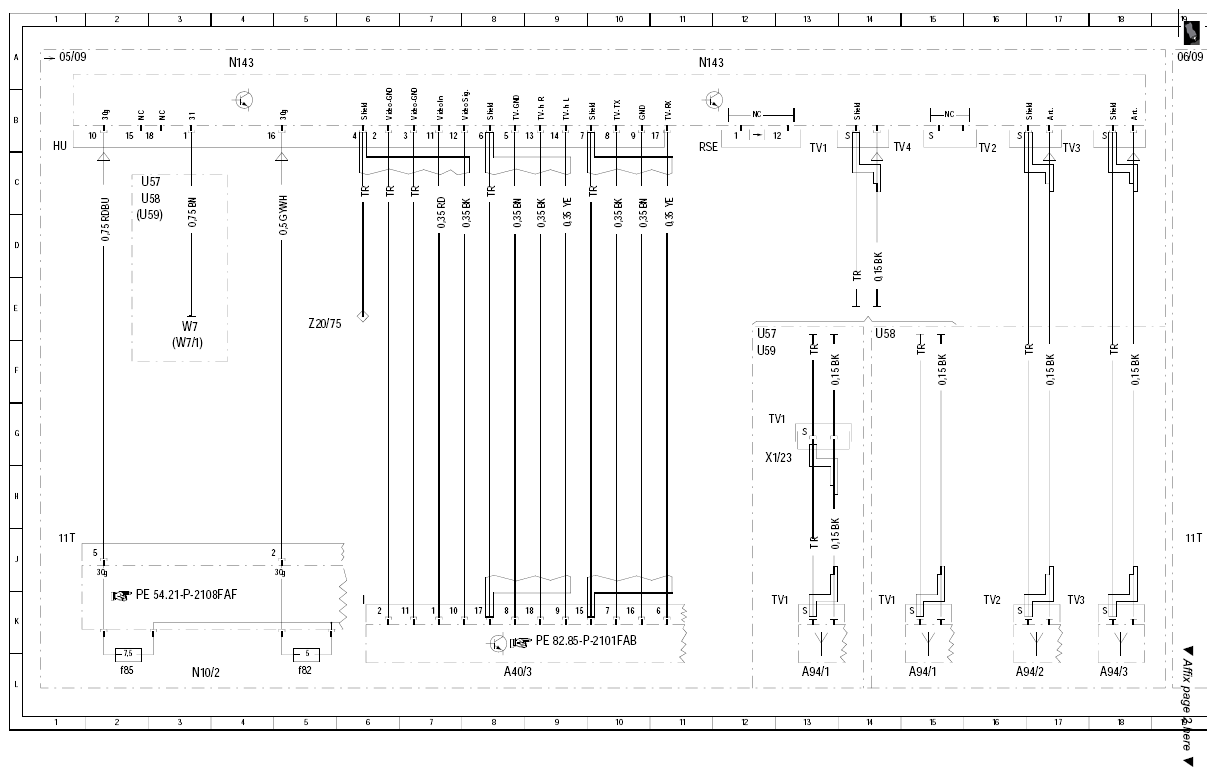

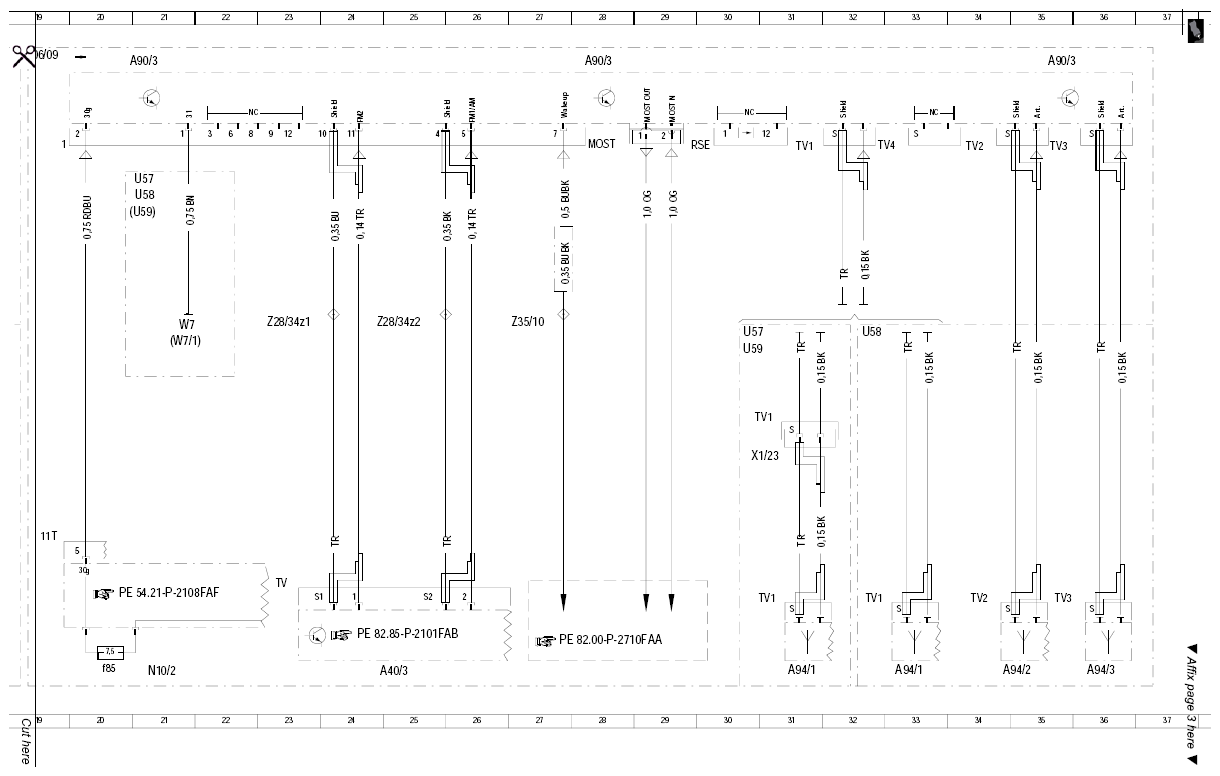

Wiring diagram of TV tuner - PE82.60-P-2220-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

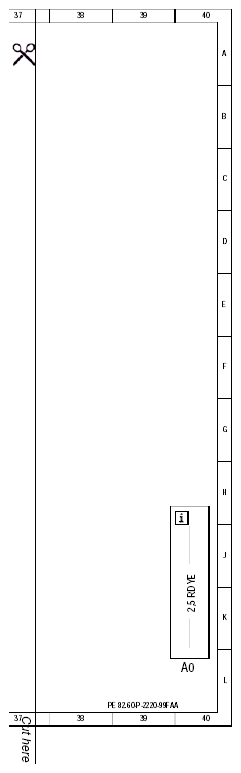

| A0 | Color code key | 40 L |
| A40/3 | COMAND control unit | 8 L |
| A40/3 | COMAND control unit | 24 L |
| A90/3 | TV digital tuner | 20 A |
| A90/3 | TV digital tuner | 28 A |
| A90/3 | TV digital tuner | 35 A |
| A94/1 | TV 1 and DAB band III antenna | 13 L |
| A94/1 | TV 1 and DAB band III antenna | 14 L |
| A94/1 | TV 1 and DAB band III antenna | 31 L |
| A94/1 | TV 1 and DAB band III antenna | 33 L |
| A94/2 | TV 2 antenna amplifier | 16 L |
| A94/2 | TV 2 antenna amplifier | 34 L |
| A94/3 | TV 3 antenna amplifier | 18 L |
| A94/3 | TV 3 antenna amplifier | 36 L |
| MOST | Media Oriented System Transport | 28 C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3 L |
| N10/2 | Rear SAM control unit with fuse and relay module | 21 L |
| N10/2f85 | Fuse 85 | 2 L |
| N10/2f85 | Fuse 85 | 20 L |
| N143 | TV tuner control unit | 4 A |
| N143 | TV tuner control unit | 13 A |
| U57 | Valid for model 204.2 | 3 C |
| U57 | Valid for model 204.2 | 12 F |
| U57 | Valid for model 204.2 | 21 C |
| U57 | Valid for model 204.2 | 30 F |
| U58 | Valid for model 204.0 | 3 C |
| U58 | Valid for model 204.0 | 14 F |
| U58 | Valid for model 204.0 | 21 C |
| U58 | Valid for model 204.0 | 32 F |
| U59 | Valid for model 204.9 | 3 D |
| U59 | Valid for model 204.9 | 12 F |
| U59 | Valid for model 204.9 | 20 D |
| U59 | Valid for model 204.9 | 30 F |
| W7 | Right wheelhouse trunk ground point | 3 E |
| W7 | Right wheelhouse trunk ground point | 21 E |
| W7/1 | Right taillamp trunk ground point | 3 F |
| W7/1 | Right taillamp trunk ground point | 21 F |
| X1/23 | TV antenna 1 electrical connector | 12 H |
| X1/23 | TV antenna 1 electrical connector | 30 H |
| Z20/75 | Screening end connector sleeve | 5 E |
| Z28/34z1 | TV tuner shielding connector sleeve | 23 E |
| Z28/34z2 | TV tuner shielding connector sleeve | 24 E |
| Z35/10 | MOST wake-up signal connector sleeve | 27 E |
