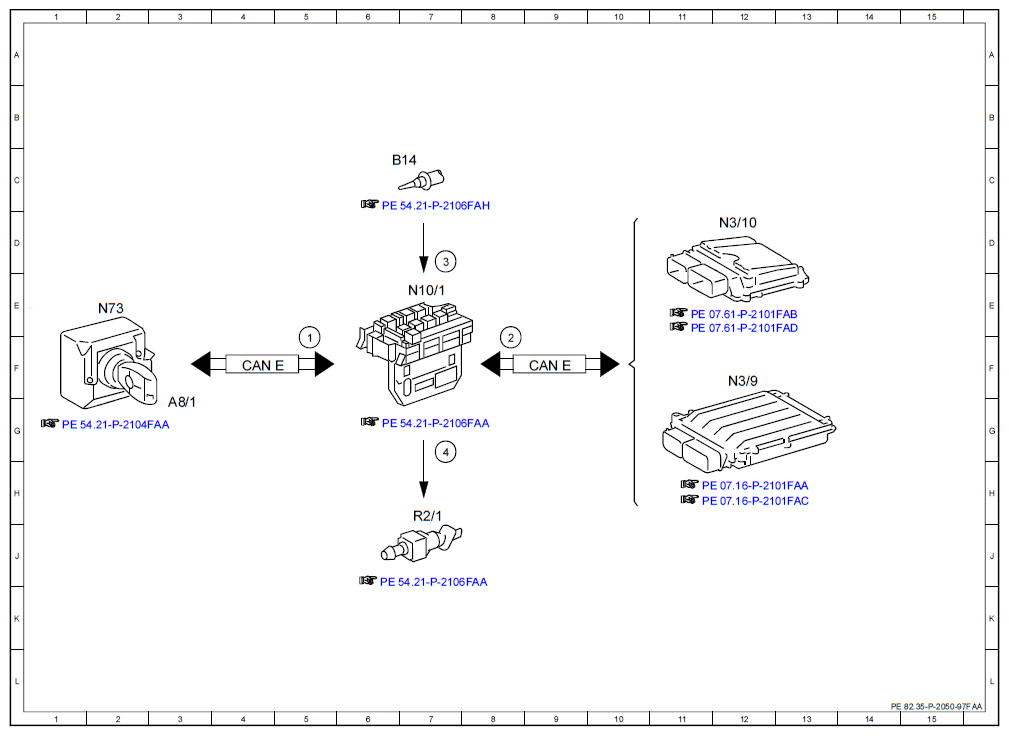

Electrical function schematic for washer nozzle heater - PE82.35-P-2050-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | |
| 2 | Circuit 61, status | |
| 3 | Outside temperature, signal | |
| 4 | Spray nozzle heater, actuation | |
| A8/1 | Transmitter key | 3G |
| B14 | Outside temperature sensor | 6C |
| CAN E | Chassis CAN | |
| CAN E | Chassis CAN | |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N3/10 | ME-SFI [ME] control unit | 12D |
| N3/9 | CDI control unit | 12F |
| N73 | Electronic ignition switch control unit | 2E |
| R2/1 | Spray nozzle heater | 7H |
