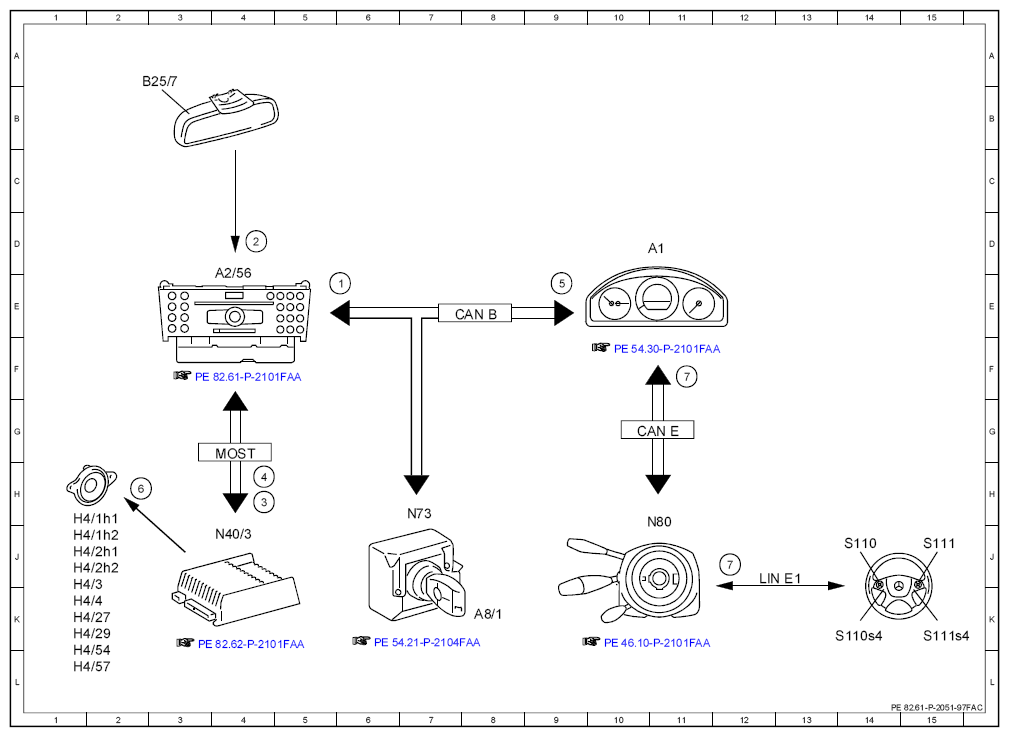

Electrical function schematic for Auto Pilot System (APS) - PE82.61-P-2051-97FAC
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Voice input, signal | 4D |
| 3 | Sound system amplifier, actuation | 4H |
| 4 | Audio applications, signal | 4H |
| 5 | Instrument cluster, message | 9E |
| 6 | Speaker, actuation | 2H |
| 7 | Multifunction steering wheel button group, signal | 12J |
| 7 | Multifunction steering wheel button group, signal | 11F |
| A1 | Instrument cluster | 10D |
| A2/56 | Radio with auto pilot system | 4E |
| A8/1 | Transmitter key | 8K |
| B25/7 | Voice control system microphone | 3A |
| CAN B | Interior CAN | |
| CAN E | Chassis CAN | |
| H4/1h1 | Left front door tweeter | 1H |
| H4/1h2 | Left front door bass speaker | 1J |
| H4/27 | Center instrument panel speaker | 1K |
| H4/29 | Bass speaker | 1K |
| H4/2h1 | Right front door tweeter | 1J |
| H4/2h2 | Right front door bass speaker | 1J |
| H4/3 | Left rear door speaker | 1K |
| H4/4 | Right rear door speaker | 1K |
| H4/54 | Left rear surround speaker | 1L |
| H4/57 | Right rear surround speaker | 1L |
| LIN E1 | Steering LIN | |
| MOST | Media Oriented System Transport | |
| N40/3 | Sound system amplifier control unit | 4J |
| N73 | Electronic ignition switch control unit | 7H |
| N80 | Steering column module control unit | 10J |
| S110 | Left multifunction steering wheel button group | 14J |
| S110s4 | "Back" and voice control system OFF button | 13K |
| S111 | Right multifunction steering wheel button group | 15J |
| S111s4 | Voice control system ON button | 15K |
