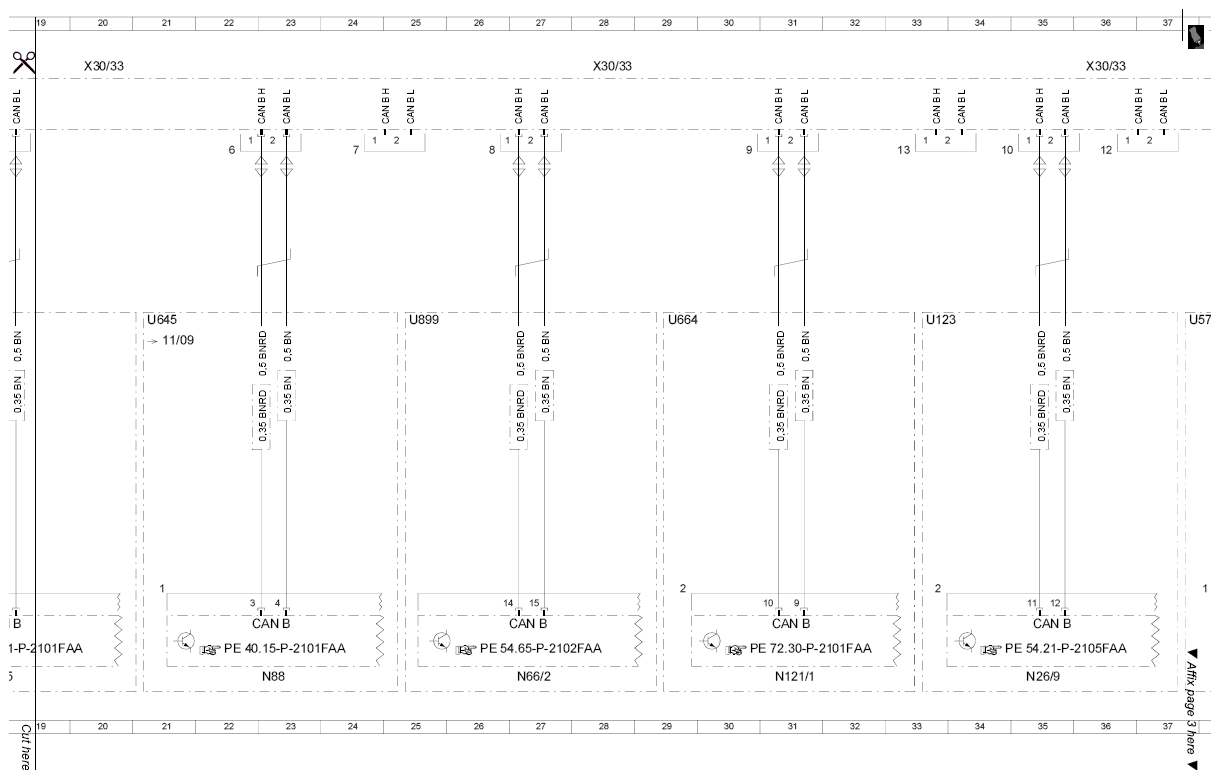

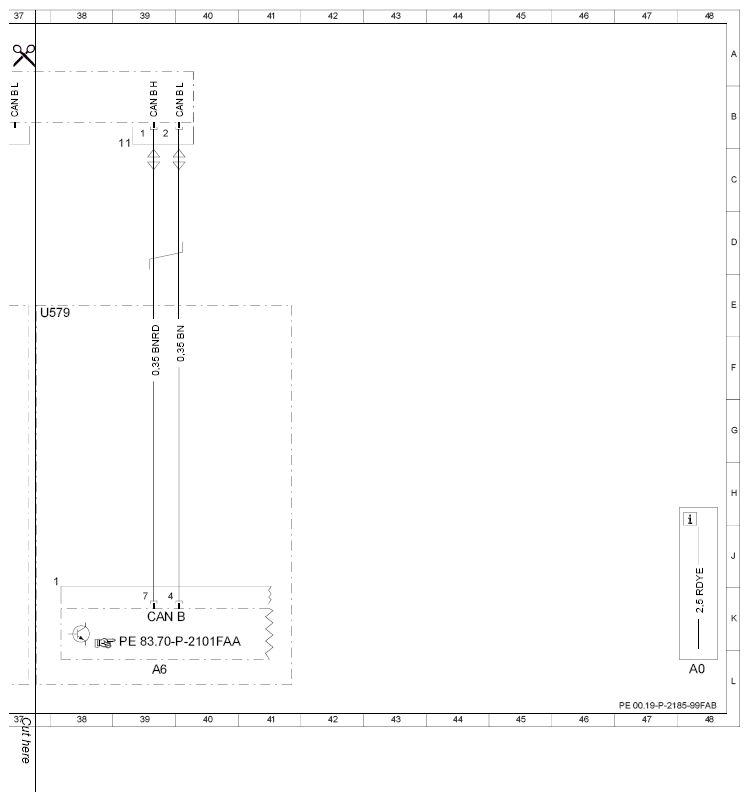

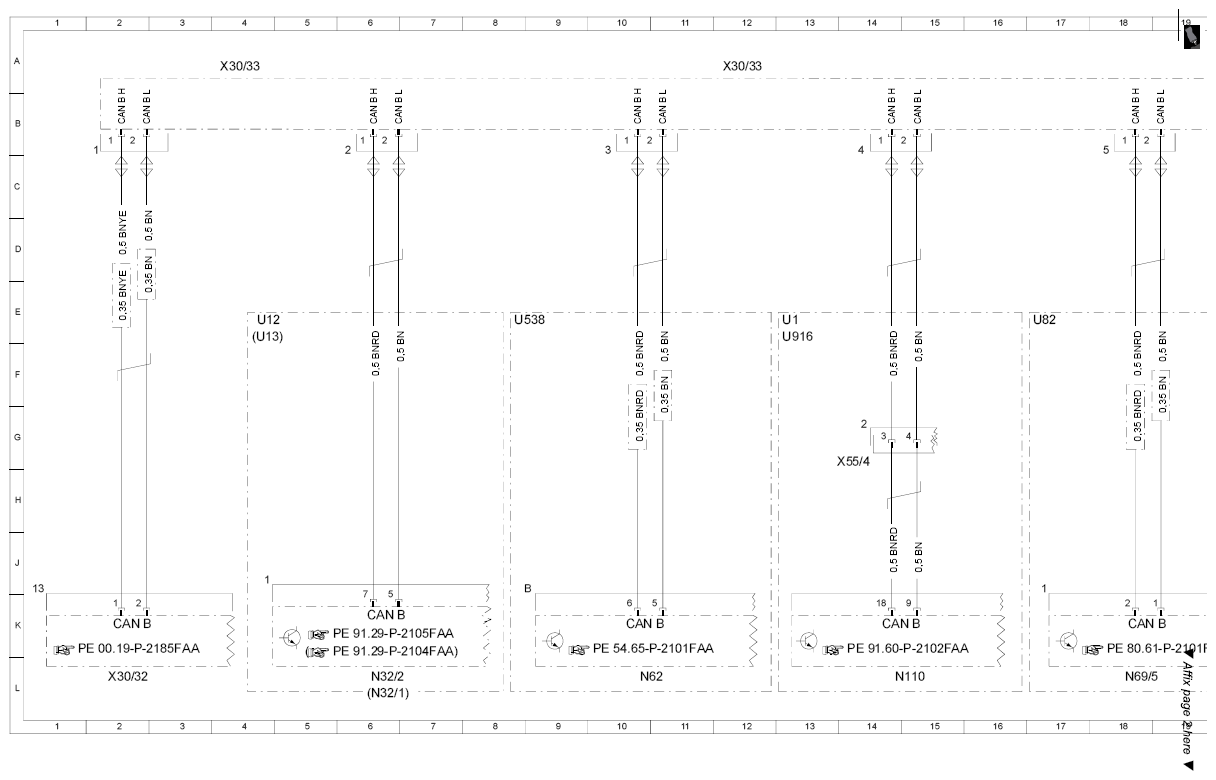

Wiring diagram of interior CAN - PE00.19-P-2185-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 40 L |
| CAN B | Interior CAN | 2 K |
| CAN B | Interior CAN | 6 K |
| CAN B | Interior CAN | 10 K |
| CAN B | Interior CAN | 14 K |
| CAN B | Interior CAN | 18 K |
| CAN B | Interior CAN | 22 K |
| CAN B | Interior CAN | 26 K |
| CAN B | Interior CAN | 30 K |
| CAN B | Interior CAN | 34 K |
| N110 | Weight Sensing System (WSS) control unit | 14 L |
| N121/1 | Tailgate control unit | 30 L |
| N26/9 | Special-purpose vehicle multifunction control unit | 34 L |
| N32/1 | Driver seat control unit | 6 L |
| N32/2 | Front passenger seat control unit | 6 L |
| N62 | PARKTRONIC control unit | 10 L |
| N66/2 | Reverse camera control module | 27 L |
| N69/5 | KEYLESS GO control unit | 18 L |
| N88 | Tire pressure monitor control unit | 22 L |
| U1 | Valid for USA | 13 E |
| U12 | Valid for left-hand steering | 4 E |
| U123 | Valid for taxi electrical system | 33 E |
| U13 | Valid for right-hand steering | 4 F |
| U538 | Valid for PARKTRONIC | 8 E |
| U645 | Valid for tire pressure monitor | 21 E |
| U82 | Valid for KEYLESS GO | 17 E |
| U899 | Valid for backup camera | 25 E |
| U916 | Valid for weight sensing system (WSS) | 13 F |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 2 L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 4 A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12 A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 20 A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 28 A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 36 A |
| X55/4 | Front passenger seat contacting strip | 13 H |
