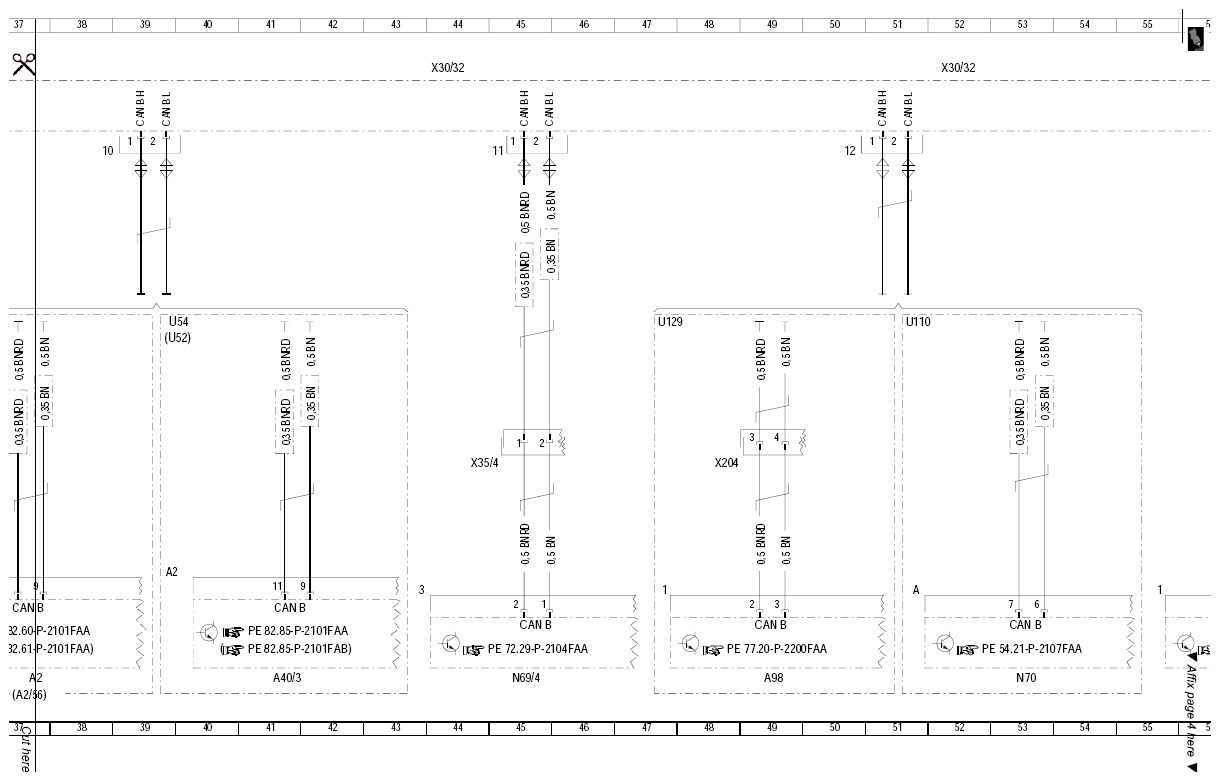

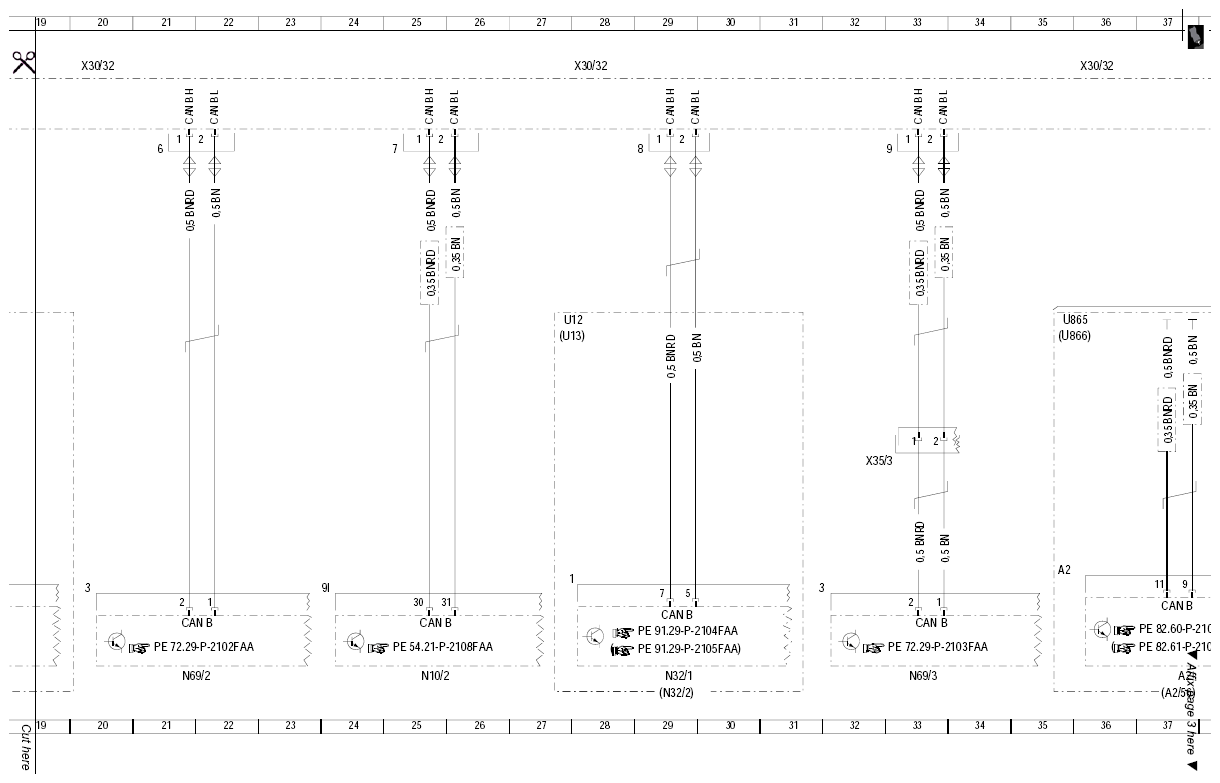

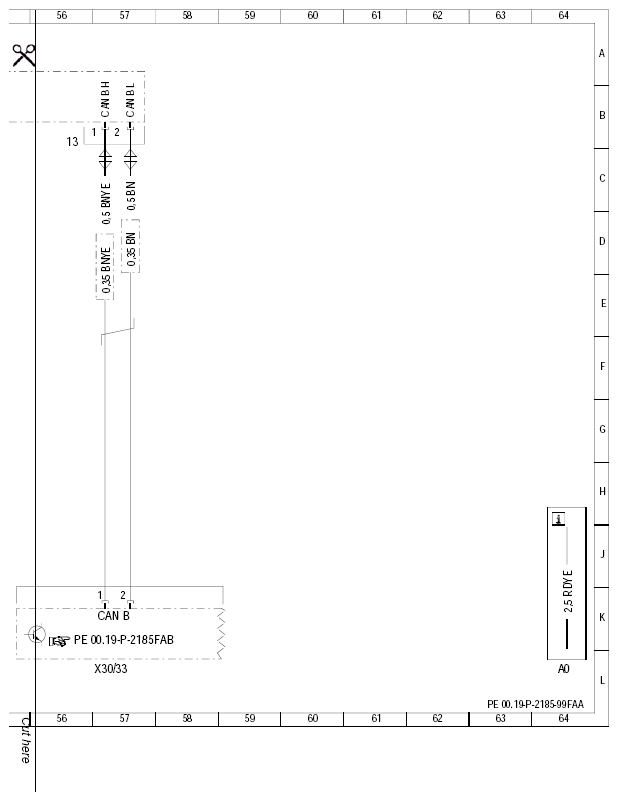

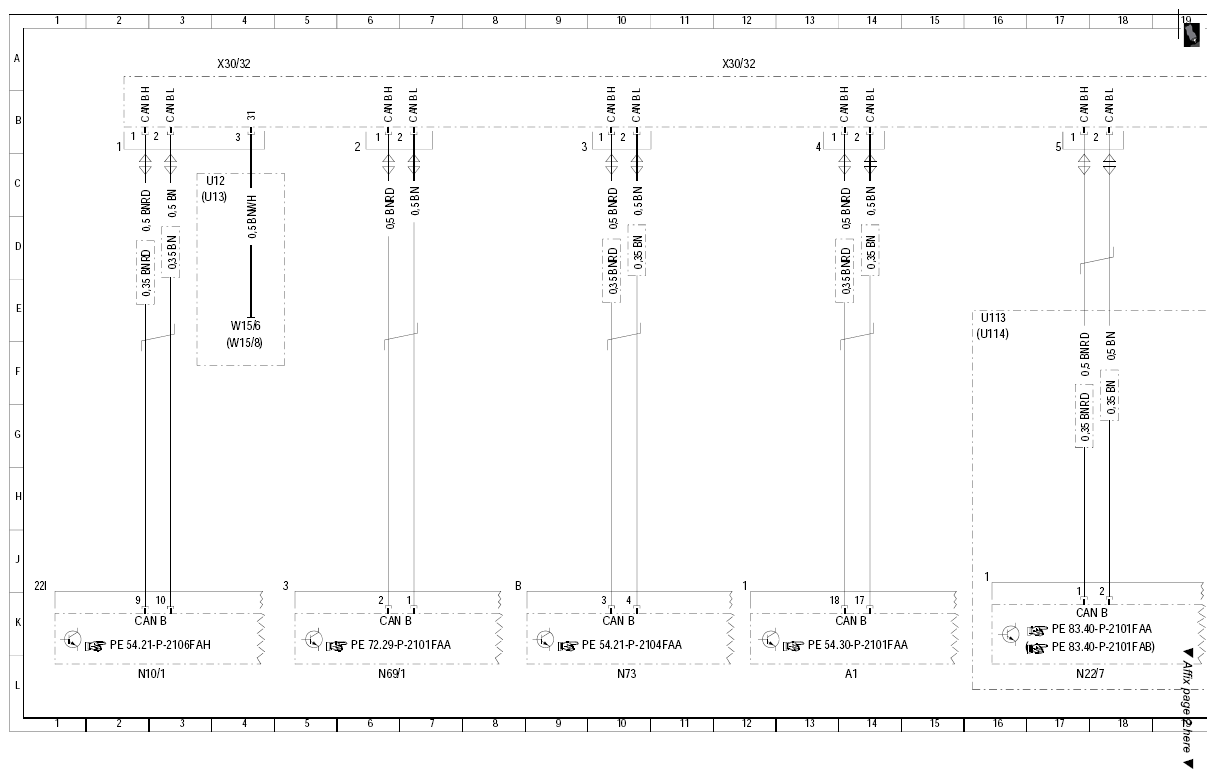

Wiring diagram of interior CAN - PE00.19-P-2185-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 64 L |
| A1 | Instrument cluster | 14 L |
| A2 | Radio | 37 L |
| A2/56 | Radio with auto pilot system | 37 L |
| A40/3 | COMAND control unit | 41 L |
| A98 | Panoramic sliding roof control module | 49 L |
| CAN B | Interior CAN | 2 K |
| CAN B | Interior CAN | 6 K |
| CAN B | Interior CAN | 10 K |
| CAN B | Interior CAN | 13 K |
| CAN B | Interior CAN | 17 K |
| CAN B | Interior CAN | 21 K |
| CAN B | Interior CAN | 25 K |
| CAN B | Interior CAN | 29 K |
| CAN B | Interior CAN | 33 K |
| CAN B | Interior CAN | 37 K |
| CAN B | Interior CAN | 41 K |
| CAN B | Interior CAN | 45 K |
| CAN B | Interior CAN | 49 K |
| CAN B | Interior CAN | 53 K |
| CAN B | Interior CAN | 56 K |
| N10/1 | Front SAM control module with fuse and relay module | 2 L |
| N10/2 | Rear SAM control module with fuse and relay module | 25 L |
| N22/7 | Automatic air conditioning control and operating unit | 17 L |
| N32/1 | Driver seat control unit | 29 L |
| N32/2 | Front passenger seat control unit | 29 L |
| N69/1 | Left front door control unit | 6 L |
| N69/2 | Right front door control unit | 21 L |
| N69/3 | Left rear door control unit | 33 L |
| N69/4 | Right rear door control unit | 45 L |
| N70 | Overhead control panel control module | 53 L |
| N73 | Electronic ignition switch control unit | 10 L |
| U110 | Valid for overhead control panel with CAN | 51 E |
| U113 | Valid for 2-zone THERMATIC | 16 E |
| U114 | Valid for 3-zone THERMOTRONIC | 16 F |
| U12 | Valid for left-hand steering | 3 C |
| U12 | Valid for left-hand steering | 27 E |
| U129 | Valid for panoramic sliding roof | 47 E |
| U13 | Valid for right-hand steering | 3 C |
| U13 | Valid for right-hand steering | 27 F |
| U52 | Valid for Japan | 39 F |
| U54 | Valid for all except Japan | 39 E |
| U865 | Valid for Audio 20 radio | 35 E |
| U866 | Valid for Audio 50 | 35 F |
| W15/6 | Ground point (right front footwell CAN) | 4 E |
| W15/8 | Ground point (right front footwell CAN) | 4 F |
| X204 | Panoramic sliding roof electrical connector | 48 H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 4 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 12 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 20 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 27 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 36 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 44 A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 52 A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 56 L |
| X35/3 | Left rear door electrical connector | 32 E |
| X35/4 | Right rear door electrical connector | 44 E |
