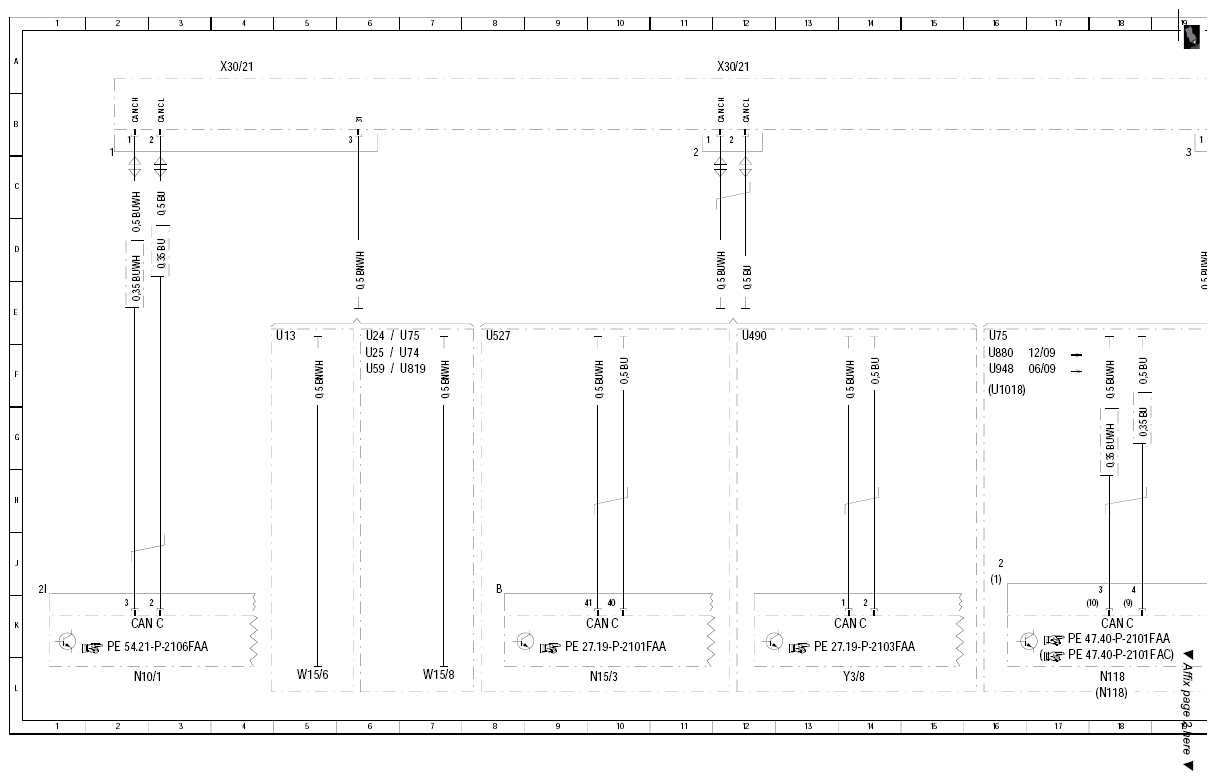

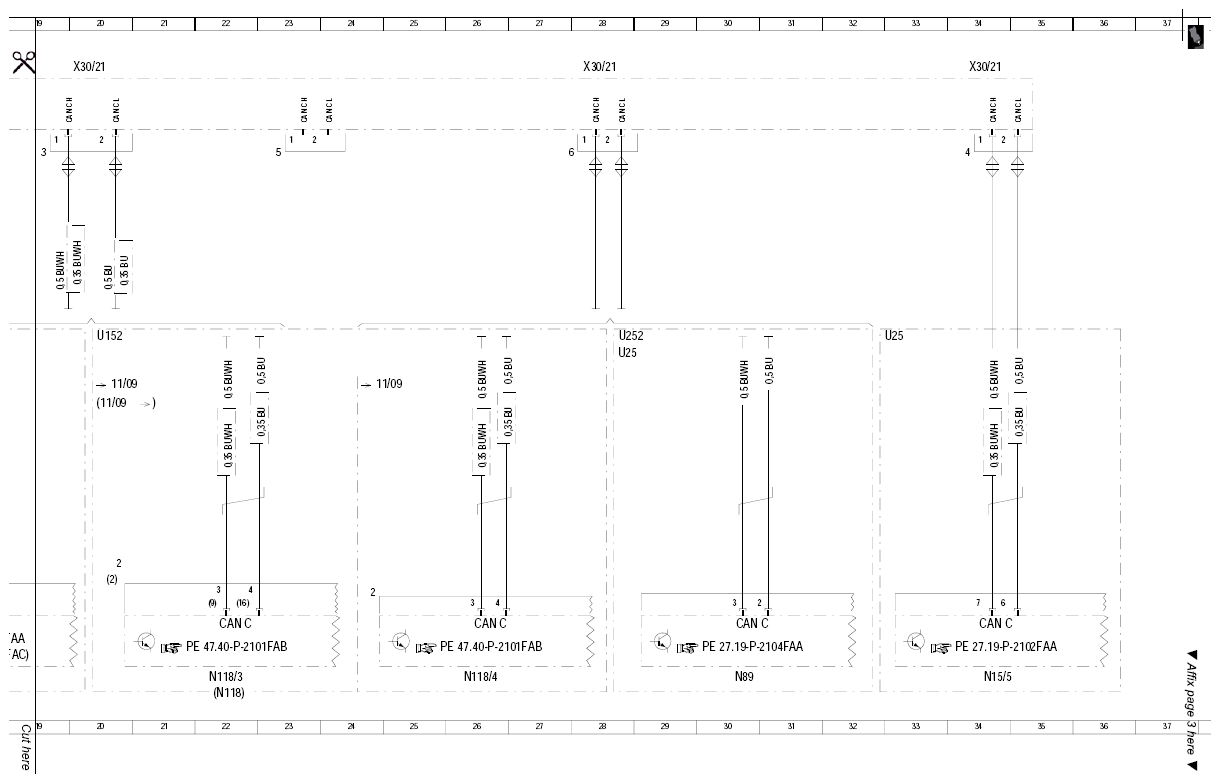

Wiring diagram of drive train CAN - PE00.19-P-2170-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

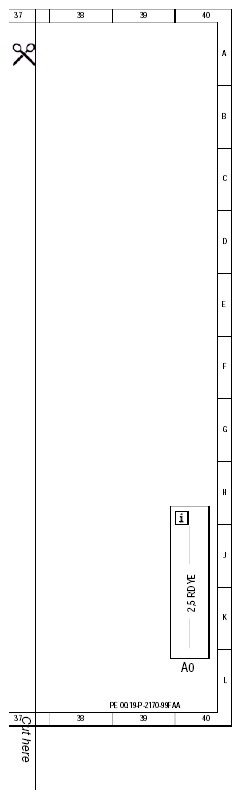

| A0 | Explanation of color codes | 23 A |
| CAN C | Drive train CAN | 2 K |
| CAN C | Drive train CAN | 9 K |
| CAN C | Drive train CAN | 13 K |
| CAN C | Drive train CAN | 17 K |
| CAN C | Drive train CAN | 21 K |
| N10/1 | Front SAM control module with fuse and relay module | 2 L |
| N118 | Fuel pump control module | 18 L |
| N15/3 | Electronic transmission control unit | 9 L |
| N15/5 | Electronic selector lever module control module | 21 L |
| U13 | Valid for right-hand steering | 4 F |
| U24 | Valid for manual transmission | 6 F |
| U25 | Valid for automatic transmission | 6 F |
| U25 | Valid for automatic transmission | 20 F |
| U490 | Valid for 7-speed automatic transmission | 12 F |
| U527 | Valid for electronic transmission control | 8 F |
| U74 | Valid for diesel vehicles | 7 F |
| U75 | Valid for gasoline engines | 7 F |
| U75 | Valid for gasoline engines | 16 F |
| W15/6 | Ground point (right front footwell CAN) | 5 L |
| W15/8 | Ground point (right front footwell CAN) | 7 L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 4 A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 12 A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 20 A |
| Y3/8 | Fully integrated transmission control unit | 14 L |
