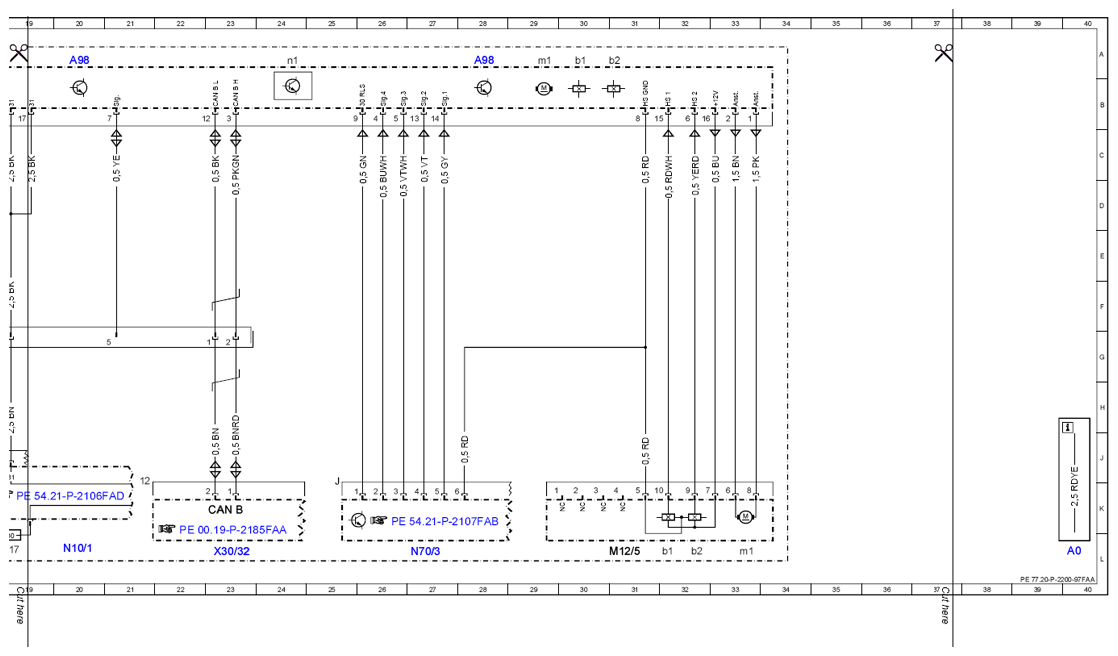

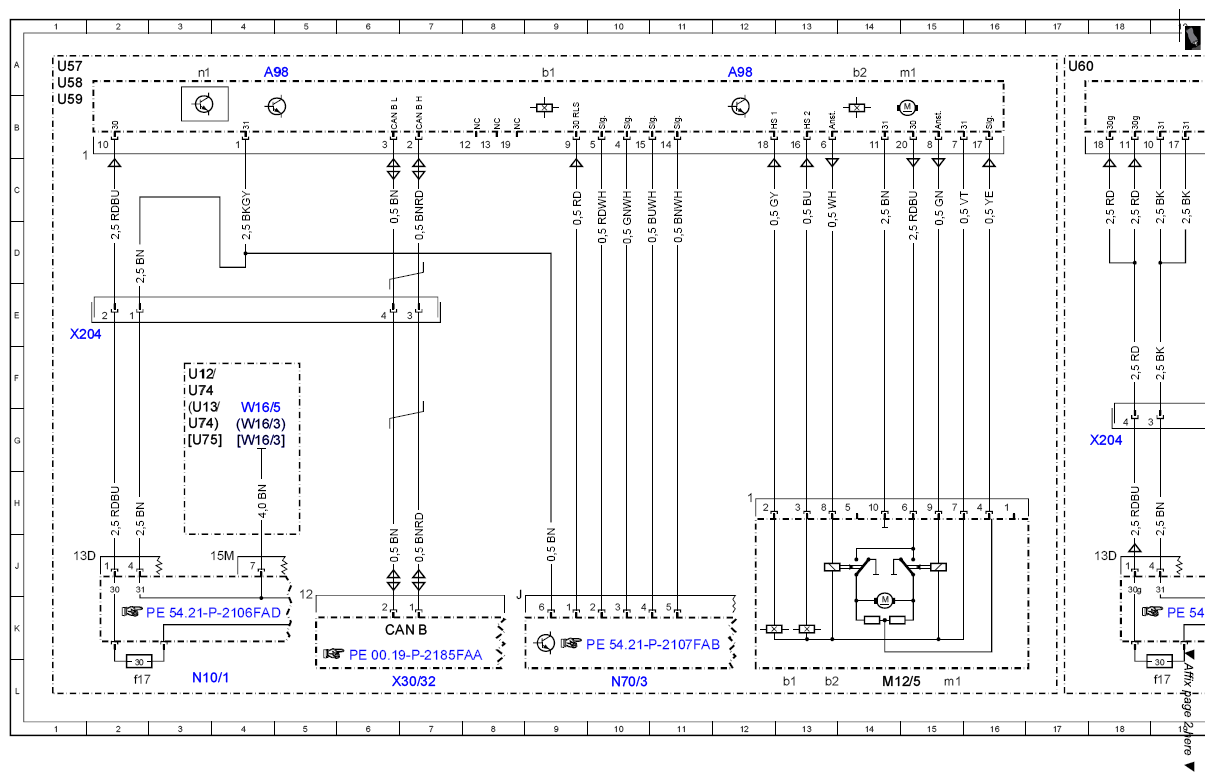

Electric wiring diagram for panoramic sliding roof - PE77.20-P-2200-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98 | Panoramic sliding roof control module | 20A |
| A98 | Panoramic sliding roof control module | 28A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 9A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 30A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 14A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 31A |
| A98m1 | Panoramic sliding roof motor | 15A |
| A98m1 | Panoramic sliding roof motor | 29A |
| A98n1 | Panoramic sliding roof control unit | 3A |
| A98n1 | Panoramic sliding roof control unit | 24A |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 23K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 14L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 31L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 13L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 32L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 13L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 32L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 15L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 33L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 20L |
| N10/1f17 | Fuse 17 | 2L |
| N10/1f17 | Fuse 17 | 19L |
| N70/3 | Overhead control panel electronics | 10L |
| N70/3 | Overhead control panel electronics | 27L |
| U12 | Valid for left-hand drive vehicles | 3F |
| U13 | Valid for right-hand drive vehicles | 3G |
| U57 | Valid for model 204.2 | 1A |
| U58 | Valid for model 204.0 | 1A |
| U59 | Valid for model 204.9 | 1B |
| U60 | Valid for model 204.3 | 17A |
| U74 | Valid for diesel engines | 3G |
| U74 | Valid for diesel engines | 3F |
| U75 | Valid for gasoline engines | 3G |
| W16/3 | Left major assembly compartment ground point | 4G |
| W16/3 | Left major assembly compartment ground point | 4G |
| W16/5 | Left major assembly compartment electronics ground point | 4G |
| X204 | Panoramic sliding roof electrical connector | 18G |
| X204 | Panoramic sliding roof electrical connector | 2E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 7L |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 23L |
