Display transmission information, function - GF54.30-P-3023QQ
Model 209.3 /4 with TRANSMISSION 722.6 with CODE (428) Steering wheel shift buttons
Model 209.376 /476 with TRANSMISSION 722.6
Shown as of 1.6.03

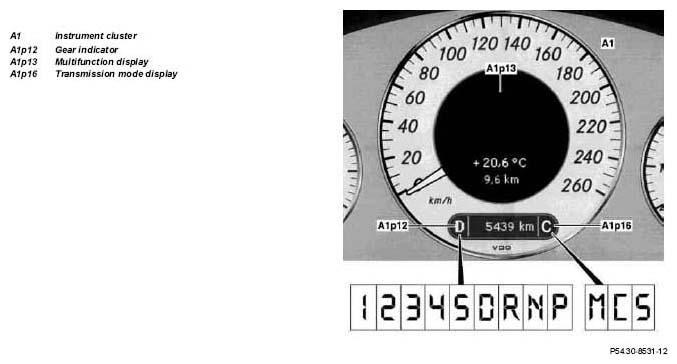

Gear indicator (A1p12) in the instrument cluster (A1) in the sport program (S) and comfort program (C)
The shift range 1, 2, 3, 4 or selector lever position D, R, N or P currently selected by the driver is displayed in the gear indicator (A1p12).
Gear indicator (A1p12) in the instrument cluster (A1) in the manual program (M)
The engaged gear 1, 2, 3, 4 or 5 is displayed to the driver in the gear indicator (A1p12).
Transmission mode display (A1p16) in the instrument cluster (A1) up to 31.5.03
The program selection winter program (W), standard program (S) or manual program (M) performed at the transmission mode switch(S16/5) is displayed to the driver in the transmission mode display (A1p16).
Transmission mode display (A1p16) in the instrument cluster (A1) as of 1.6.03
The program selection sport (S), comfort program (C) or manual program (M) performed at the transmission mode switch (S16/5) is displayed to the driver in the transmission mode display (A1p16).
| Instrument cluster (IC), location/task | GF54.30-P-3039Q |
