Display transmission information, function - GF54.30-P-3023Q
Model 209.3 /4 (except 209.32 /35 /376 /377 /42 /45 /472 /476 /477) with TRANSMISSION 722.6 except CODE (428) Steering wheel shift buttons
Shown as of 1.6.03

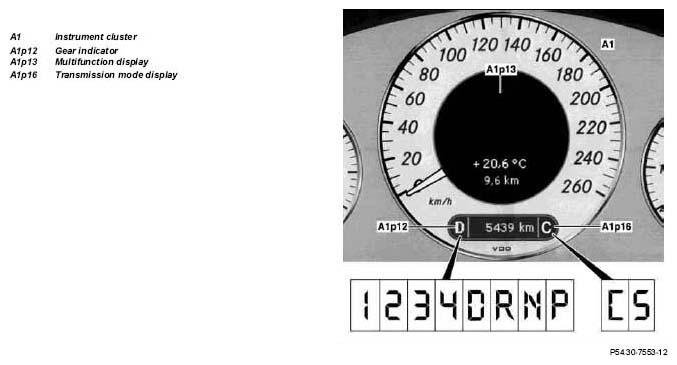

Gear indicator (A1p12) in instrument cluster (A1):
In the gear indicator (A1p12) the currently selected shift range 1, 2, 3, 4 or selector lever position D, R, N or P is displayed to the driver in the gear indicator.
Transmission mode display (A1p16) in the instrument cluster (A1) up to 31.5.03
The winter program selection (W) or standard program (S) performed at the transmission mode switch (S16/5) is displayed to the driver in the transmission mode display (A1p16).
Transmission mode display (A1p16) in the instrument cluster (A1) as of 1.6.03
The program selection (S) (sport program) or "C" (comfort program) performed at the transmission mode switch (S16/5) is displayed to the driver in the transmission mode display (A1p16).
| Instrument cluster (IC), location/task | GF54.30-P-3039Q |
