Shape body flange for taillamp with embossing tool - AR63.50-P-1400-09CW

Fig 1: Identifying Embossing Tool (164 589 00 39 00)
G07508380Courtesy of MERCEDES-BENZ USA

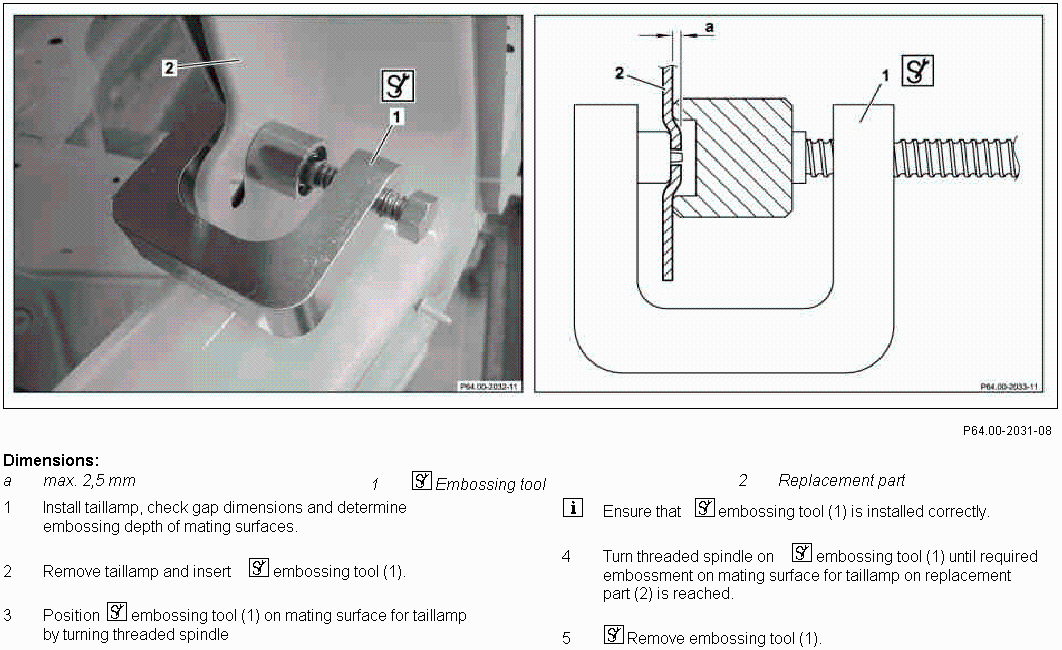

Fig 2: Shaping Body Flange For Taillamp With Embossing Tool
G00534115Courtesy of MERCEDES-BENZ USA
