Installing rear inner wheel well - AR63.10-P-0670-04QA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1029-01A | Celette straightening bracket set 7203.300 (model 203) |
| WE58.40-Z-1030-01A | Car bench straightening bracket set 82434, (model 203) |
| WE58.40-Z-1031-01A | Celette straightening bracket set 7203.309 (model 203), as supplement to 7203.300 |
| WE58.40-Z-1042-01A | Celette straightening bracket set 7209.309 (model A 209), as supplement to 7203.300 (model 203), as well as 7203.310 (model C209) |
| WE58.40-Z-1001-01E | Celette straightening bench |
| WE58.40-Z-1003-01E | Car-Bench straightening bench |
| WE58.40-Z-1006-01E | Celette Multi-Z straightening set system |
| WE58.40-Z-1007-01E | Celette module crossmember set 955.940 |
| WE58.40-Z-1008-01E | Celette additional member 955.908 |
| WE58.40-Z-1010-01E | Car-Bench universal cross member set A 296 |
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |
- Inner rear wheel well with multi-Z straightening tool (rear spring strut dome), fit and fasten with clamping pliers.

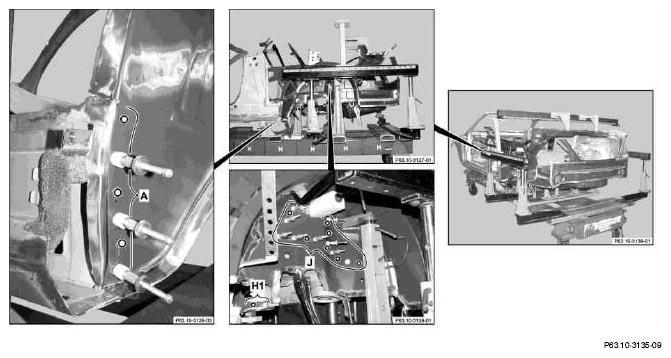

- Drill dia. 6.5 mm rivet holes (areas A, H1 and J).

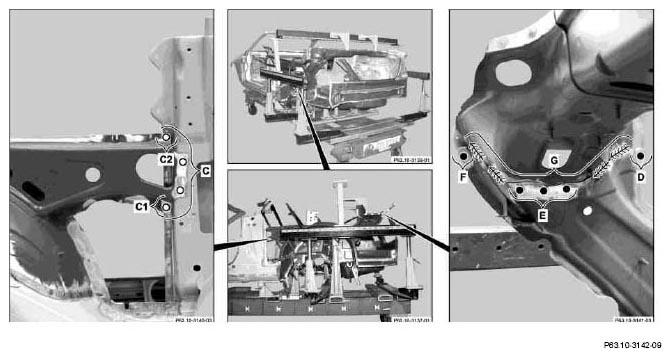

- Drill dia. 6.5 mm rivet holes (areas C, C1 and C2).
- Remove inner rear wheel well and deburr rivet holes on both sides.
- Install rear inner wheel well and fasten with screw-on clamping gripper and clamping pliers.
(Area G).
(area D, E and F).

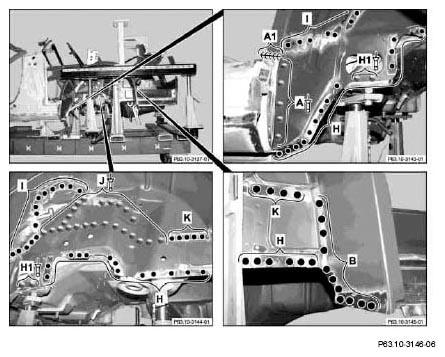

- Rivet rear inner wheel well with dia. 6.4 x 14 mm Polygrip flat head rivets (areas A, H1 and J).
(area A1)
(areas B, H, I and K).
