Remove outer paneling from upper A-pillar - AR63.20-P-1105-01QA

Fig 1: Identifying Spot Weld Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A	Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM)
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

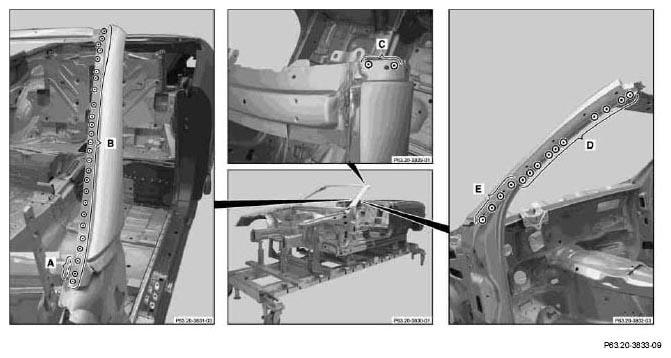

Fig 2: Identifying MIG Welding Area

Courtesy of MERCEDES-BENZ USA

1. Separate MIG weld (area A)
2. Cut out spot welds (areas B, C, D and E)

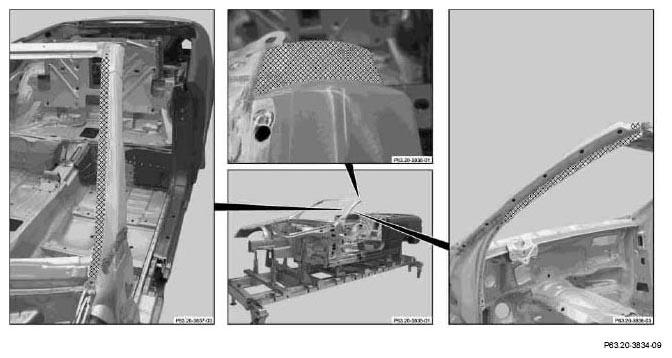

   Fig 3: Identifying Grinding Area

   Courtesy of MERCEDES-BENZ USA
3. Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
4. Remove grinding and drilling chips using wet/dry vacuum cleaner.
5. Coat insides of spot weld flanges with zinc dust paint.
