Prepare outer rear wheel well section for installation - AR63.10-P-0660-03QBS

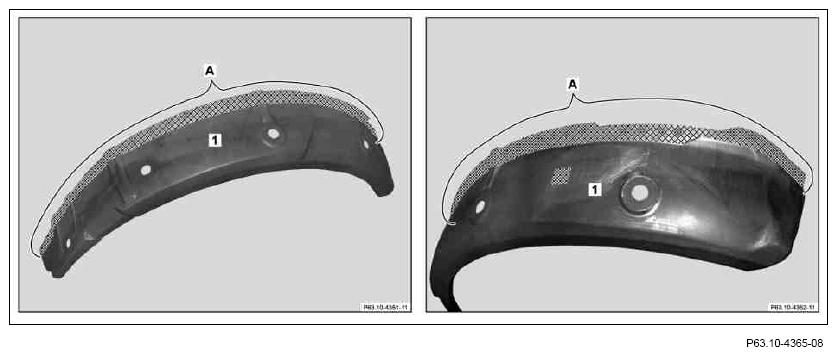

Fig 1: Identifying Outer Rear Wheel Well Section Mating Surfaces
G07827836Courtesy of MERCEDES-BENZ USA
  1. Grind mating surfaces on outer rear wheel well section (1) down to bare metal in crosshatched areas on both sides.

    IMPORTANT Observe pretreatment of bonding surfaces (area A).

  2. Coat insides of mating surface with zinc dust paint.

    NOTES Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (area A).
