Remove/install cover on gearshift lever - AR68.20-P-2310QA
MODEL 209 as of 1.6.04 except CODE (P98) Black Series
MODIFICATION NOTES
| 29.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
|---|---|---|---|

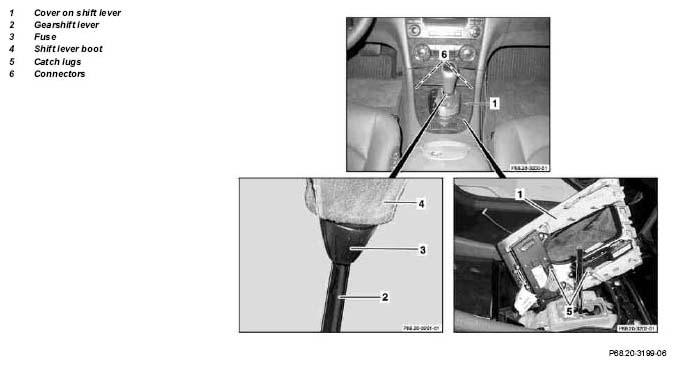

| 1 | Loosen shift lever booth (4) from shift lever cover (1) and pull over shift lever (3). | Fig 2 | |
| 2 | Turn retainer (3) one half turn counterclockwise and unlock | ||
| 3 | Remove shift lever boot (4) upward | ||
| 4 | Open ashtray | ||
| 5 | Pull gearshift lever cover (1) upward in area of catch lugs (5) | ||
| 6.1 | Disconnect connectors (6) from rear of cover on gearshift lever (1) | With stationary heater, code 228 | |
| 7 | Install in the reverse order |
