Remove/install cover on gearshift lever - AR68.20-P-2310Q
MODEL 209 up to 31.5.04
MODIFICATION NOTES
| 29.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
|---|---|---|---|

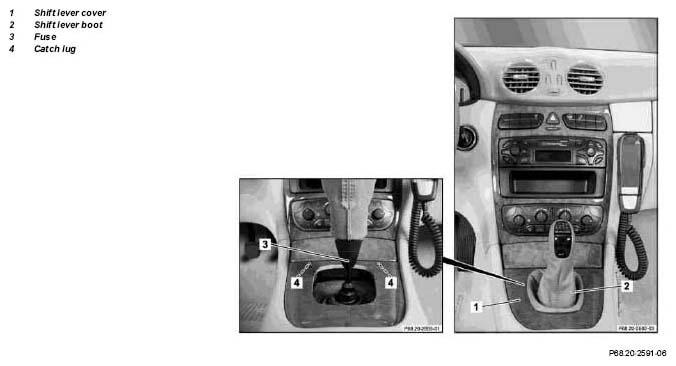

| 1 | Loosen shift lever boot (2) and pull over shift lever | Fig 2 | |
| 2 | Turn retainer (3) one half turn | ||
| 3 | Remove shift lever boot (2) upward | ||
| 4 | Pull shift lever cover (1) upward in area of catch lugs (4) | ||
| 5.1 | Disconnect electrical connectors on rear of shift lever cover (1). | Only on vehicles with stationary heater, code 228 | |
| 6 | Install in the reverse order |
