E-CALL control module, location/task/design - GF82.95-P-4200QU

MODEL 209.3 /4 with CODE (349) E-Call emergency call system with CODE (491) U.S. version

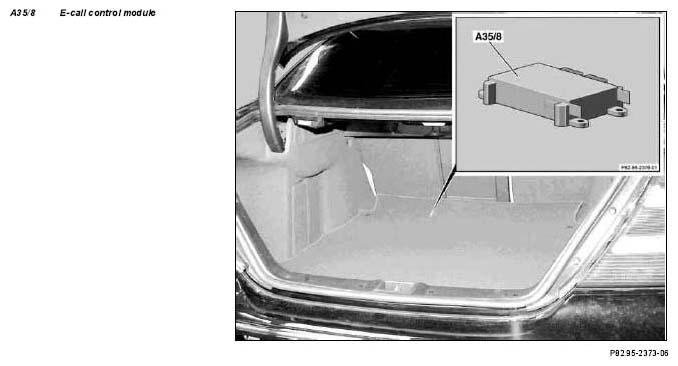

Fig 1: Identifying E-Call Control Module Location

	E-call control module, location	The E-call control module (A35/8) is located on the luggage compartment floor in the control module block behind the rear bench seat.
	E-call control module, purpose	Central control of E-Call emergency call system Calculation of vehicle location Detection of a vehicle rollover Triggering an emergency call
	E-call control module, design	Stable metal housing with 4-hole fixing Integrated gyro sensor Integral tilting cone sensor (B66)
