Retrofit antenna - AN82.62-P-0001-02QQS

  1. Position left bumper antenna (31) above the holes in the bumper as per the picture and fasten in the holes in the left bumper antenna (31) marked with 2 and 4 using the large-area washers M6 (35) and expansion rivets (36) listed in the parts ordering note table in the bumper as per the picture.
  2. Position right bumper antenna (32) above the holes in the bumper as per the picture and fasten in the holes in the right bumper antenna (32) marked with 2 and 4 using the large-area washers M6 (35) and expansion rivets (36) listed in the parts ordering note table in the bumper as per the picture.
  3. Insert antenna line (33) in the cable duct of the bumper as per the picture and fasten so that it does not scuff or rattle.

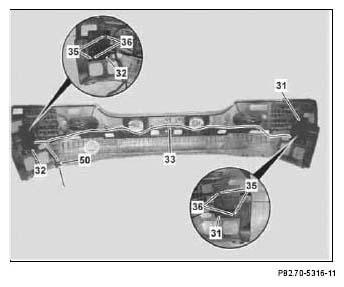

    Fig 1: Identifying Bumper Antenna, Rivets And Washers
    G04959987
  4. Attach the cable grommet (50) listed in the parts ordering note table as per the picture to the antenna line (33).

    IMPORTANT On vehicles with Parktronic, the cable grommet (50) is already available on the Parktronic wiring harness and the antenna line (33) has also to be pulled in into the cable grommet (50).

  5. Route antenna line (33) through opening (see arrow) in luggage compartment and install cable grommet (50) in opening (see arrow).
  6. Install bumper.
    Fig 2: Locating Cable Grommet And Antenna Line
    G04959988
  7. Route antenna line (33) as per the picture and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.
    Fig 3: Identifying Cable Grommet
    G04959989
  8. Route antenna line (33) as per the picture on the rear shelf and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.
    Fig 4: Identifying Antenna Line
    G04959990
  9. Route antenna line (33) as per the picture behind the right rear seat belt retractor and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle using self-adhesive felt (39).
    Fig 5: Identifying Self-Adhesive Felt
    G04959991
  10. Attach 20 X 70 mm self-adhesive felt strips (40) as per the picture on antenna line (33) every 200 mm in area of window cutouts.
    Fig 6: Identifying Self-Adhesive Felt Strips
    G04959992
  11. Remove headliner (41) underneath rubber seal (42) and attach antenna line (33) as per the picture with 20 X 70 mm self-adhesive felt strips (40)underneath rubber seal (42)on outer roof edge (43) every 200 mm in area of window cutout.

    IMPORTANT Please ensure during installation that the 20 X 70 mm self-adhesive felt strips (40) do not protrude over the outer roof edge (43) into the interior so that the function of the windowbag is not being affected!

  12. Install headliner (41) underneath rubber seal (42).
    Fig 7: Identifying Headliner And Rubber Seal
    G04959993
  13. Route antenna line (33) at right A-pillar in front passenger footwell as per the picture and fasten with 20 X 70 mm self-adhesive felt strips (40).
    Fig 8: Identifying Antenna Line And Self-Adhesive Felt Strips
    G04959994
  14. Route antenna line (33) in front passenger footwell and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.
    Fig 9: Identifying Antenna Line
