Remove/install steering column adjustment switch - AR54.25-P-2804Q

MODEL 209 up to 31.5.04 with CODE (441) Electrically adjustable steering column

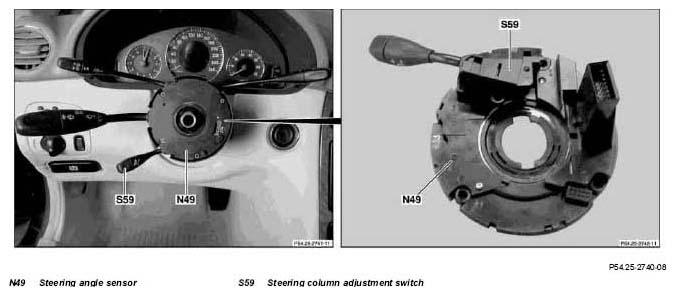

Fig 1: Identifying Steering Column Adjustment Switch Components
G04960302Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

24.5.06 "Disconnect/connect ground line on battery" removed
REMOVINGINSTALLING Remove/install
1 Remove transmitter key from electronic ignition switch control unit
2 Remove steering angle sensor (N49)   AR46.10-P-0300Q
3 Remove steering column adjustment switch (S59)
4 Install in the reverse order
