Remove/install combination switch - AR54.25-P-2800Q
MODEL 209 up to 31.5.04
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | Model 169, 171, 199, 203, 209, 211, 215, 219, 220, 230, 240 Model 463.243/244/245/246/247/248/ 249/250/254/270/271/309/322/323/ 332/333 |
AH91.00-P-0002-01M | |
| 1 | Remove transmitter key from electronic ignition switch control unit | ||
| 2 | Remove steering wheel | AR46.10-P-0100P | |
| 3 | Remove clock spring contact | AR46.10-P-0200Q | |
| 4 | Remove steering angle sensor | AR46.10-P-0300Q | |

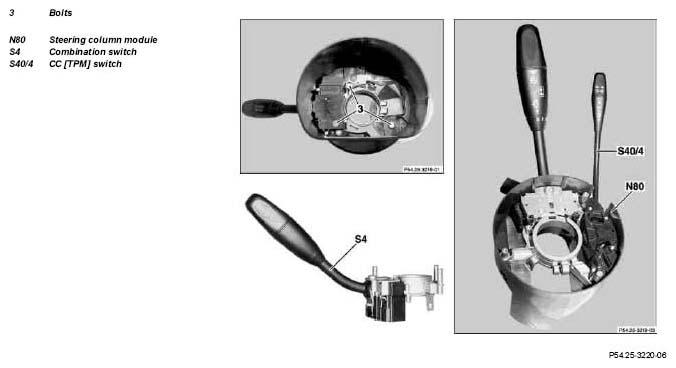

| 5 | Remove cruise control switch (S40/4) from steering column module (N80) | ||
| 6 | Remove bolts (3) | ||
| 7 | Remove combination switch (S4) from steering column module (N80) | ||
| 8 | Install in the reverse order |
