Remove/install SAM control unit with fuse and relay box in rear - AR54.21-P-1259Q
MODEL 209.3
MODIFICATION NOTES
| 12.4.05 | Stage basic data in STAR DIAGNOSIS, added and disconnect battery ground line, taken away | Steps 1 to 8 |
| Remove/Install | |||
|---|---|---|---|
| 1.1 | Connect STAR DIAGNOSIS and stage basic data from rear SAM control unit with fuse and relay module (N10/2) in STAR DIAGNOSIS | Only when installing new the rear SAM control unit with fuse and relay module (N10/2). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS system | *WH58.30-Z-1048-13A | ||
| 2 | Remove left paneling in trunk | See ↓ Remove paneling in trunk |
AR68.30-P-4600PB |

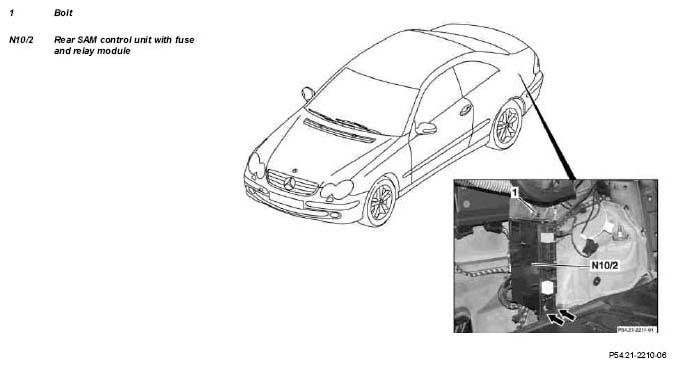

| 3 | Unscrew bolt (1) | ||
| 4 | Unlock rear SAM control unit with fuse and relay module (N10/2) and take out until the electrical connectors are accessible | ||
| 5 | Unlock and separate electrical connectors from rear SAM control unit with fuse and relay module (N10/2) | ||
| Disconnecting cables from control units and fuse and relay boxes |
AR54.18-P-1261-01P | ||
| Connecting cables to control units and fuse and relay boxes | AR54.18-P-1261-02P | ||
| 6 | Remove rear SAM control unit with fuse and relay module (N10/2) | ||
| 7.1 | Check fuse and relay assignment at rear SAM control unit with fuse and relay module (N10/2) | Only when installing new the rear SAM control unit with fuse and relay module (N10/2). | |
| Fuse assignment of fuse and relay box in trunk | GF54.15-P-1256-01Q | ||
| Relay assignment of fuse and relay box in trunk | GF54.15-P-1257-01P | ||
| 8 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS system, Compact Passenger Car | 6511 1801 00 |
