Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006Q
MODEL 209 with CODE (220a) Parktronic System (PTS)
Shown on model 209.3
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Removal/installation | |||
|---|---|---|---|

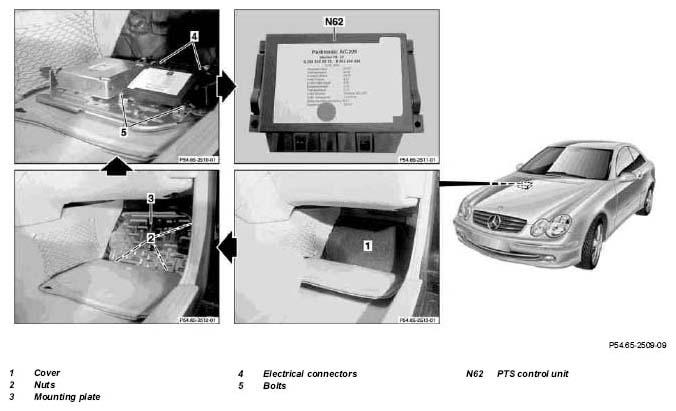

| 1 | Fold back floor covering in passenger footwell | ||
| 2 | Take out cover (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove mounting plate (3) from vehicle floor | ||
| 5 | Separate electrical connectors (4) | ||
| 6 | Unscrew bolts (5) | ||
| 7 | Remove PTS control unit (N62) from guides | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read and erase diagnostic trouble code memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 10 | Perform function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS system, Compact Passenger Car | 6511 1801 00 |
