Upper control panel control unit, design - GF54.21-P-4105-03QB

Illustrated on model 209.3

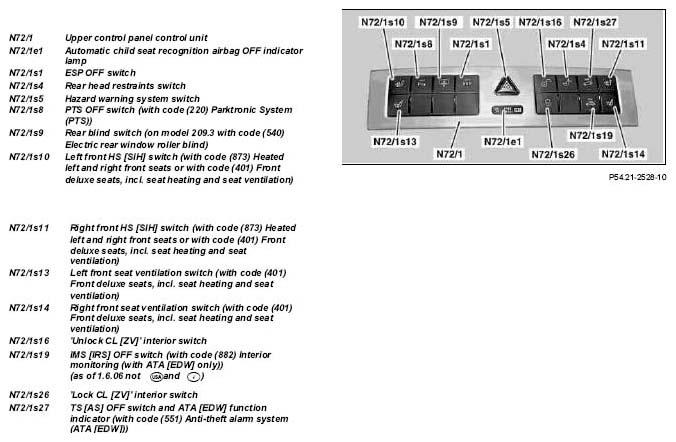

Fig 1: Identifying Upper Control Panel Control Unit Switches - Illustrated On Model 209.3
G04960219

IMPORTANT With USA ONLY and JAPAN ONLY with code (551) Anti-theft alarm system (ATA [EDW]) the tow-away protection function is discontinued as of 1.6.06.

The TS [AS] OFF switch and ATA [EDW] function indicator (N72/1s27) is designed as a blind button. The ATA [EDW] function indicator remains fitted.
