Rear control unit, location/task - GF54.21-P-4133Q: Notes

MODEL 209.3

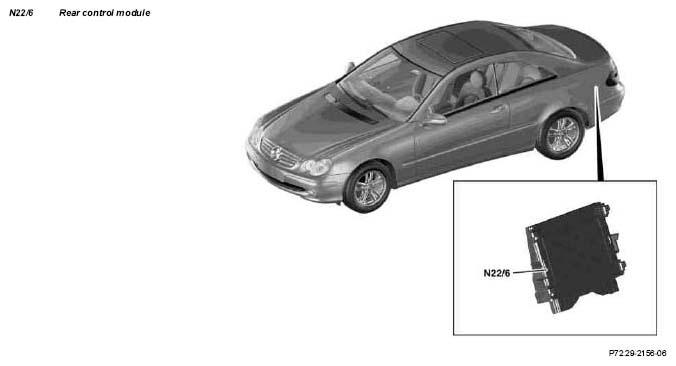

Fig 1: Identifying Rear Control Module Location
G04960222
  Rear control unit, location The rear control unit (N22/6) is located behind the left trunk lining on the inner wheelhouse.
  Rear control unit, task   GF54.21-P-4133-01Q
