PTS control module, location / task - GF54.65-P-4100Q

MODEL 209.3 /4 with CODE (220a) Parktronic system (PTS)

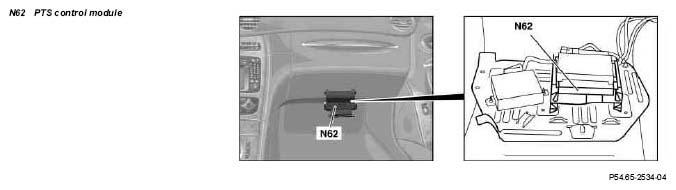

Fig 1: Identifying PTS Control Module Location

	PTS control module, location	The Parktronic control module (N62) is located under the footwell base plate on the passenger-side.
	PTS control module, task	Voltage supply and actuation of sensors and PTS warning displays Evaluation of echo journey times Bidirectional data transfer from and to the PTS warning displays System check Data exchange with CAN class B
