Instrument cluster (IC), location / task - GF54.30-P-3039Q: Notes

Model 209.3 /4

Location of component

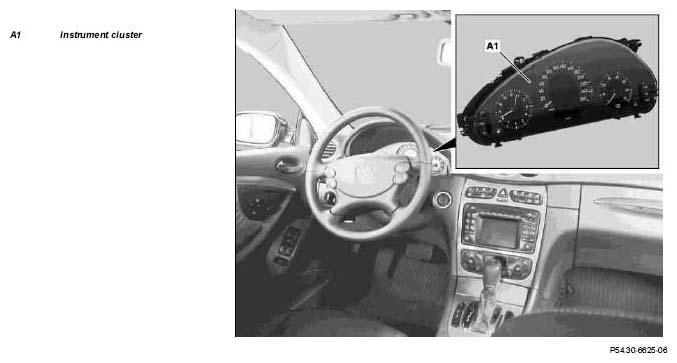

Fig 1: Identifying Instrument Cluster (IC) Location

	Instrument cluster (KI), location	The instrument cluster (A1) is located in the instrument panel.
	Instrument cluster (IC), task		GF54.30-P-3039-02Q
