Front seat ventilation motors, location - GF91.30-P-3100-01S

Model 215, model 220

Illustrated on model 220:

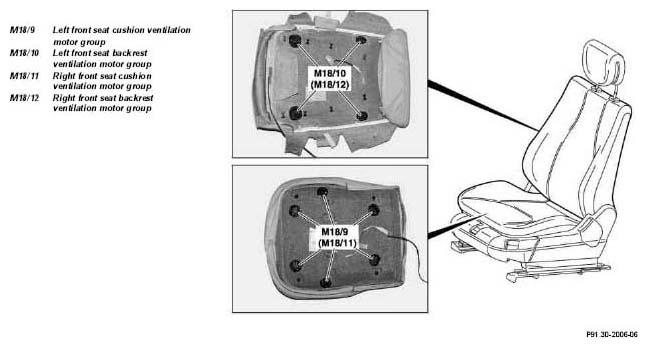

Fig 1: Identifying Front Seat Ventilation Motors Location - Model 220

G04851644
