Removing and installing transmitter/receiver unit - AR82.70-P-8911I
MODEL 215, 220 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B)
Shown on model 220
| Removing, installing | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| *WH58.30-Z-1012-09A | |||
| 2 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| 3.1 | Remove rear seat cushion | Model 215. | AR91.12-P-1020N |
| Model 220. | AR91.12-P-1020MA | ||
| 3.2 | Remove bucket seats | Model 220 with code 401, right side only. | AR91.12-P-1020M |
| 4 | Remove seat adjustment mechanism on rear seat | Model 220 with code 401, right side only. | AR91.12-P-1520M |
| 5 | Fold back cover mats | ||

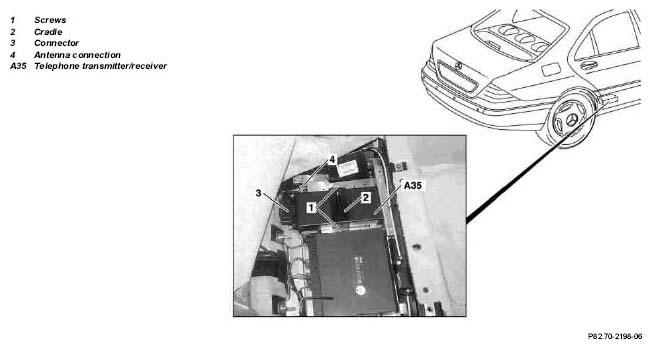

| 6 | Unscrew screws (1) and remove cradle (2) | ||
| 7 | Disconnect connector (3) and antenna connection (4) from telephone transmitter/ receiver (A35) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
