Removing and installing tilting cone sensor - AR82.95-P-0013A
MODEL 215, 220 as of 1.7.00 with CODE (855) TELE AID
Shown on model 220
| Removal, installation | |||
| Risk of explosion
from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. |
No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| Notes on battery | All models. | AH54.10-P-0001-01A | |
| 2.1 | Remove rear seat cushion | Model 215 | AR91.12-P-1020N |
| Model 220 | AR91.12-P-1020MA | ||
| 2.2 | Remove bucket seats | Model 220 with code 401, right side only. | AR91.12-P-1020M |
| 3 | Remove seat adjustment mechanism on rear seat | Model 220 with code 401, right side only. | AR91.12-P-1520M |

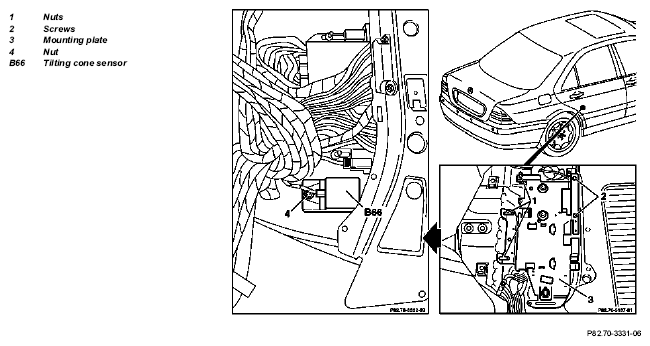

| 4 | Unscrew screws (1) and nuts (2) and remove mounting plate (3) from vehicle floor | ||
| 5 | Remove connectors from tilting cone sensor (B66) | ||
| 6 | Unscrew nut (4) | ||
| 7 | Remove tilting cone sensor (B66) | ||
| 8 | Install in the reverse order |
