Replacing knock sensor - AR15.12-P-2183GS

ENGINE 111.958 /983

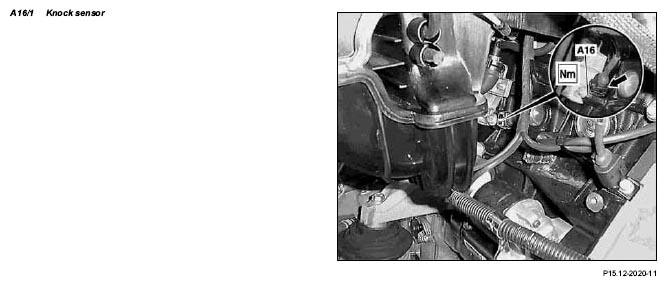

Fig 1: Identifying Knock Sensor

Fig. item, etc.	Work instructions
A16/1	Knock sensor	Unbolt	*BA15.10-P-1001-02A
Arrow	Pull off knock sensor plug	by pushing together the clamp to release.

KNOCK SENSORS

Number	Designation		Engine 111.951/ 955/958/ 983
BA15.10-P-1001-02A	Bolt, knock sensor to engine block	Nm	20
