Removing and installing charge air cooler - AR09.41-P-6817G

ENGINE 111.943 /973 in MODEL 170

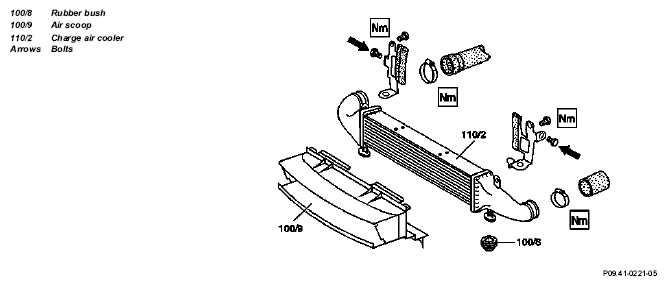

Fig 1: Identifying Charge Air Cooler Remove/Install Components - Engine 111.943 /973

	Removal, installation
1	Remove radiator grille
2	Remove front bumper		AR88.20-P-2000G
3	Unscrew bolts (arrows)		*BA09.41-P-1002-01B
4	Remove air scoop (100/9)	Installation:  ensure that the air scoop engages properly at the charge air cooler.
5	Remove charge air cooler (110/2)	Inspect rubber bushes (100/8), replace if necessary.
6	Thoroughly clean connection points of hose clips	If connection points are not cleaned, the charge air hoses and pipes may jump off during operation.
			*BA09.41-P-1001-01B
7	Install in the reverse order

Charge air pipe / Charge air cooling

Number	Designation		Engine 111.943/973
BA09.41-P-1001-01B	Hose clips of charge air pipes/hoses	Nm	3
BA09.41-P-1002-01B	Bolts to charge air cooler	Nm	25
