Retrofit portable CTEL mounting of hands-free system - AZ82.70-P-0005-01A

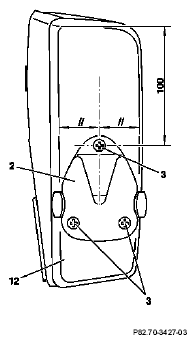

Align base holder (2) on console (12), mark holes and drill with 3mm dia. bit.
Screw base holder onto side of telephone with the 3 sheet metal screws (3) included

Fig 1: Identifying Holes Mark
Insert portable cellular telephone holder (1) into base holder (2).
Hook connection lead below console (12) with coil of spiral lever as shown in figure (arrow) and arrest from inside with adhesive felt.
If necessary, adapt console without recess slightly for connection lead

Fig 2: Identifying Connection Lead With Coil Spiral Lever
Route connector (8) into radio shaft.

Fig 3: Identifying Radio Shaft Connector
