Retrofitting wiring harness of CD changer - AZ82.64-P-0001-01M

Model 170 as of 1.7.98 except code 316, 317, 351

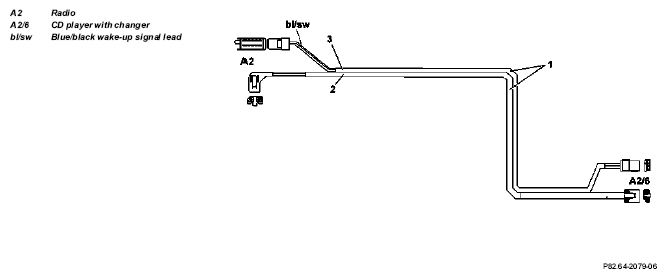

1. Prepare CD changer (1) wiring harness as shown in figure.
2. Tie D2B wiring harness (2) and power supply wiring harness (3) together.
   Fig 1: Identifying Retrofitting Wiring Harness Of CD Changer


3. Install contact spring on blue/black lead (bl/sw) of CD changer power supply wiring harness (3) and route into chamber 4 of black 10-pin connector.
4. Route black lead (sw) into chamber 5 and brown lead (br) into chamber 6 of black 10-pin connector.
   Fig 2: Identifying CD Changer Power Supply Wiring Harness

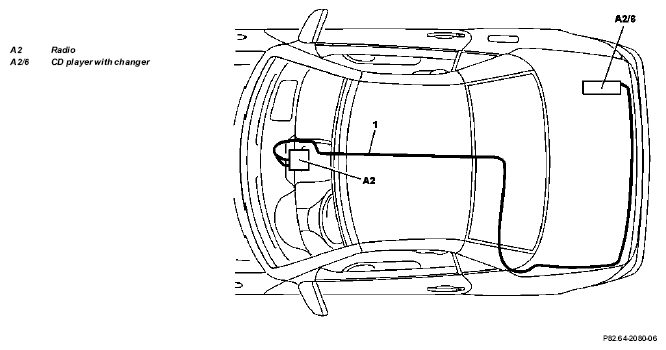

5. Route wiring harness (1) along existing leads in vehicle as shown in figure.
   Fig 3: Identifying Wiring Harness Route


6. Route wiring harness (1) through rear wall in trunk as shown in figure and fasten with felt (arrows) in area of rear wall.
   Fig 4: Identifying Wiring Harness Route On Rear Wall In Trunk

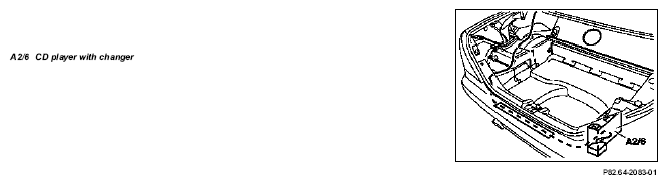

7. Route wiring harness (1) to spare wheel recess in trunk on left along existing leads.
   Fig 5: Identifying Wiring Harness Route On Spare Wheel Recess In Trunk


8. Fasten wiring harness (1) on trunk floor with wide strip of adhesive felt in area of rear trunk edge.
   Fig 6: Identifying Wiring Harness Route On Trunk Floor


9. Route wiring harness (1) from rear wall to radio shaft over center tunnel and fasten with adhesive felt.
   Fig 7: Identifying Wiring Harness Route On Rear Wall

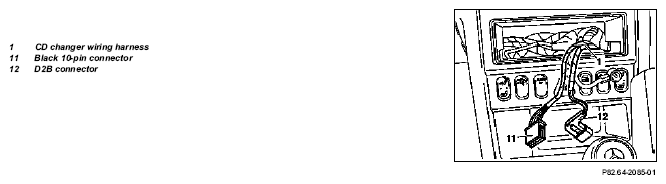

10. Route tie-out to radio in radio shaft.
    Fig 8: Identifying Wiring Harness Route On Tie-Out To Radio In Radio Shaft
