Removing and installing air cleaner - AR09.10-P-1050GA

ENGINE 111.943 /944 /947 /973 /975

Model 170 with engine 111.943/973

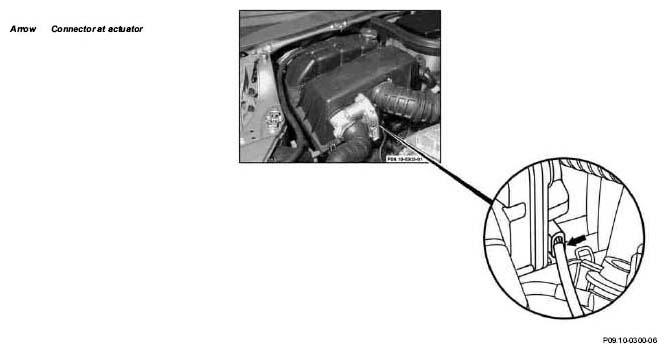

Fig 1: Identifying Connector At Actuator - Model 170 With Engine 111.943/973

Model 202, 208 with engine 111.944/975

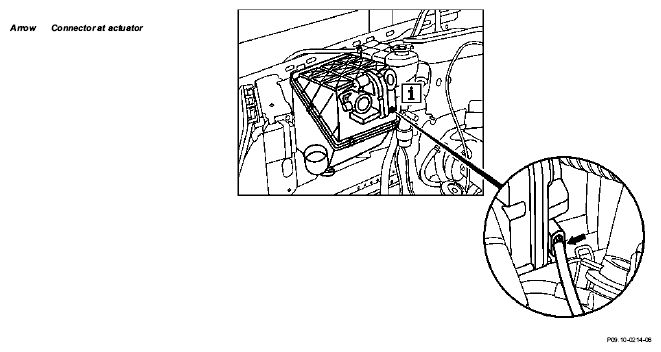

Fig 2: Identifying Connector At Actuator - Model 202, 208 With Engine 111.944/975

Model 210 with engine 111.947

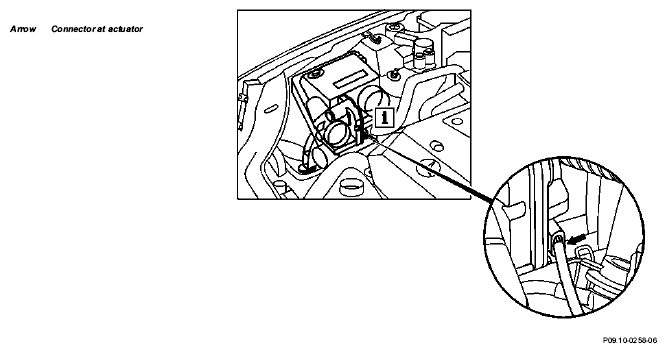

Fig 3: Identifying Connector At Actuator - Model 210 With Engine 111.947

Fig. item, etc.	Work instructions
	Connector at actuator	First of all raise catch at connector housing to unplug the connector
	Pins of air cleaner	Press into rubber bush
	Cyclone separator	Model 170, 202, 208, 210  Retrofitting not possible, fit filter felt or foam to air cleaner element
