Vario roof hydraulic system, function - GF77.37-P-0001G

MODEL 170

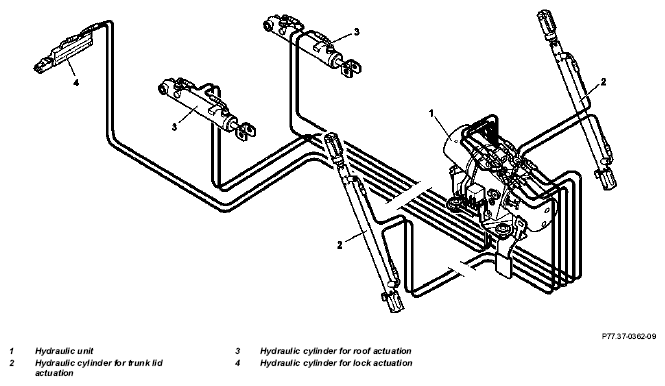

Fig 1: Vario Roof Hydraulic System Function Diagram
G04744104
  Location The hydraulic unit and the hydraulic cylinders for actuating the trunk lid are located in the trunk. The hydraulic cylinders for actuating the roof and the hydraulic cylinder for actuating the lock are located in the Vario roof.
