Interior lighting (IL), location of components - GF82.20-P-0002-01A
Location of components

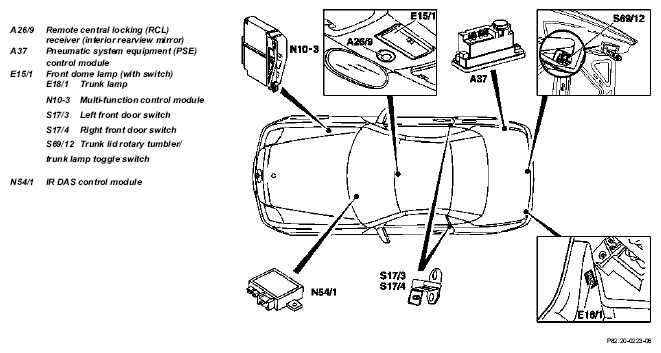

Fig 1: Identifying Interior Lighting Location Of Components
