Check poly-V-belt in visible area for wear - AP13.22-P-1352L (SL600, SL65 AMG)
ENGINE 275.950 in MODEL 220.176, 215.376
ENGINE 275.980 in MODEL 220.179, 215.379
ENGINE 275.951 in MODEL 230.476
ENGINE 275.981 in MODEL 230.479
ENGINE 275.954 in MODEL 230.477

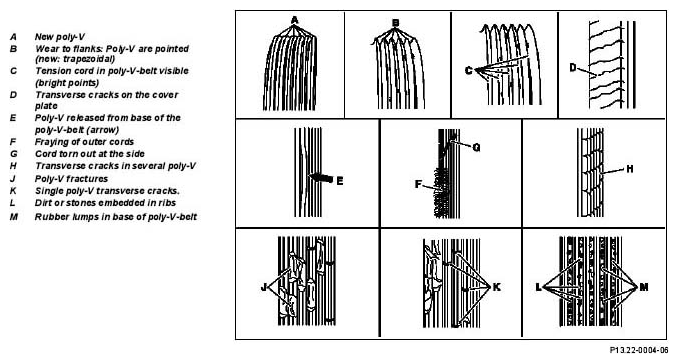

Damage diagram
| Checking | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Remove/install | |||

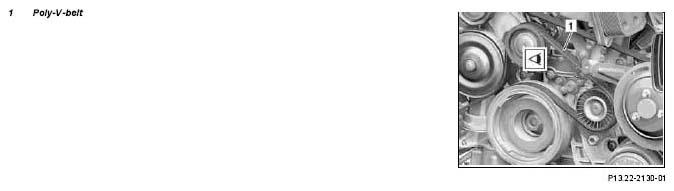

| 1 | Check poly-V belt (1) for wear and damage at visible points and compare with damage profiles | Replace poly-V belt (1) if necessary, subject to separate invoice. | AP13.22-P-1351-01A |
| 2 | Remove lower engine compartment paneling | Installation: Install engine compartment paneling only after completing all maintenance jobs. | AR61.20-P-1105R |
| Checking | |||
| 3 | Check poly-V-belt (1) for wear and damage at points visible when vehicle is raised, and compare with damage profiles | Replace poly-V belt (1) if necessary, subject to separate invoice. | AP13.22-P-1351-01A |
| 4 | Install in the reverse order |
