Remove/install fan shroud - AR20.40-P-6800AC (SL600, SL65 AMG)
ENGINE 137 in MODEL 215, 220
ENGINE 275.950 in MODEL 215.376, 220.176
ENGINE 275.951 in MODEL 230.476
ENGINE 275.981 in MODEL 230.479
ENGINE 275.954 in MODEL 230.477
Shown on model 220
MODIFICATION NOTES
| 12.8.02 | Fastening of ATF line modified in coolant line. | Step 5 |
| Remove/install | |||
| 1 | Disconnect ground line of battery | AR54.10-P-0003R | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove front engine cover | AR01.10-P-2405IM | |
| 3 | Detach plastic cover over RH lamp unit | ||
| 4 | Remove radiator crossmember | ||

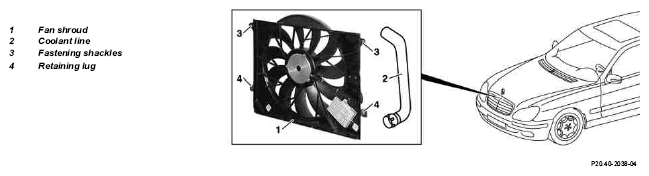

| 5 | Unclip coolant hose from top of fan shroud (1) | ||
| 6 | Remove left and right engine intake air ducts | ||
| 7 | Detach the clamps at top of radiator for fastening the fan shroud (1) | ||
| 8 | Unscrew bolts from mounting brackets (3) of fan shroud (1) | ||
| 9 | Disconnect electrical connector from fan shroud (1) and detach cable tie | ||
| 10 | Remove automatic oil line | Before opening the automatic transmission or its components, the ambiance of the separation point has to be cleaned thoroughly. Even the smallest particles of dirt, introduced into the hydraulic components, can result in malfunctions and a total failure of the automatic transmission. Only remove at top right of radiator. Seal ATF lines so that no ATF flows out. |
|
| *BA20.20-P-1001-01A | |||
| 11 | Detach coolant line bracket (2) under the fan shroud (1) | ||
| 12 | Unhook fan shroud (1) from radiator supports (4) and remove upward | Installation: Check that the fan shroud (1) is correctly seated in the radiator supports (4). | |
| 13 | |||
| 14 | Check oil level in automatic transmission, correct if necessary | AR27.00-P-0100AC |
RADIATOR, COOLANT HOSES
| Number | Designation | Engine 137.970 | Engine 275 | |
|---|---|---|---|---|
| BA20.20-P-1001-01A | Union nut, automatic transmission oil line to radiator | Nm | 20 | 25 |
