Inspect fluid level of windshield washer system, adjust to correct level - AP82.35-P-8210N

MODELS 171, 211, 215, 220, 230, 240

Model 171

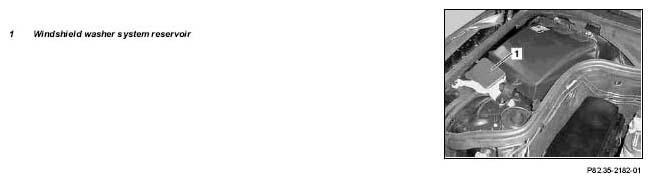

Fig 1: Identifying Windshield Washer System Reservoir (Model 171)

Courtesy of MERCEDES-BENZ USA

Model 211

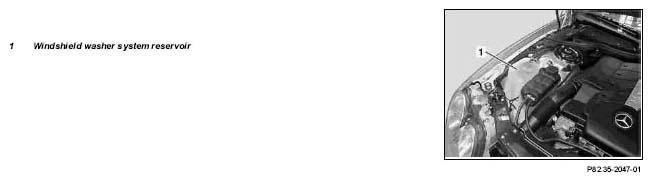

Fig 2: Identifying Windshield Washer System Reservoir (Model 211)

Courtesy of MERCEDES-BENZ USA

Model 215, 220

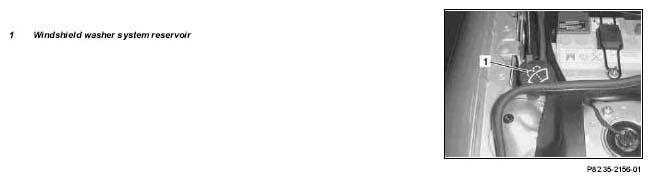

Fig 3: Identifying Windshield Washer System Reservoir (Model 215, 220)

Courtesy of MERCEDES-BENZ USA

Model 230

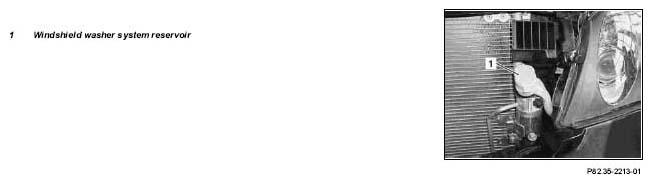

Fig 4: Identifying Windshield Washer System Reservoir (Model 230)

Courtesy of MERCEDES-BENZ USA

Model 240

Fig 5: Identifying Windshield Washer System Reservoir (Model 240)

Courtesy of MERCEDES-BENZ USA

	Check
1	Open engine hood and raise to vertical position
	Opening engine hood, moving to upright position and closing	Model 211	AR88.40-P-1000T
		Model 215, 220	AR88.40-P-1000M
		Model 230	AR88.40-P-1000R
		Model 240	AR88.40-P-1000H
2	Remove lid of windshield washer system reservoir (1)
3	Fill windshield washer system reservoir (1) with windshield washer fluid	Pay attention to mixing ratio according to table on the packaging of the windshield washer fluid concentrate. Models 171, 215, 220, 230, 240
		Windshield washer fluid Model 211	*BF82.35-P-1001-01D
		Windshield washer fluid	*BF82.35-P-1001-01C
	Windshield washer fluid concentrate	Sheet 371.0	BB00.40-P-0371-00A
4	Close windshield washer system reservoir (1) with lid
5	Close engine hood
	Opening engine hood, moving to upright position and closing	Model 211	AR88.40-P-1000T
		Model 215, 220	AR88.40-P-1000M
		Model 230	AR88.40-P-1000R
		Model 240	AR88.40-P-1000H
