Connect wiring harness - AZ82.20-P-0001-02R

Model 230

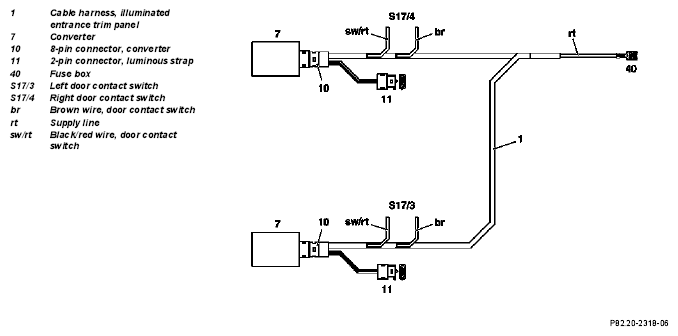

Wiring harness connection schematic illuminated door sill molding

Fig 1: Illuminated Door Sill Molding Wiring Harness Connection Schematic

Courtesy of MERCEDES-BENZ USA

The cable lug to the fuse box (40) should be crimped to the two supply lines (red).

1. Route the branch-off line of the supply lines (red) of the wiring harness for the illuminated door sill molding (1) to the rear signal and acquisition module (SAM).
2. Route both branch-off lines of the illuminated door sill molding wiring harness (1) to the door contact switches.

   The longer branch-off line is routed to the left door contact switch.

   Fig 2: Identifying Illuminated Door Sill Molding

   Courtesy of MERCEDES-BENZ USA
3. Guide branch-off line with brown and black/red wire (br, sw/rt) from the illuminated door sill molding wiring harness (1) to the right door contact switch (S17/4) and secure to existing wires.
4. Tie up standard wiring harness of right door contact switch (S17/4) approx. 60 mm and expose the brown and gray/black wire (br, gr/sw).
5. Using a cable clamping connector, connect the brown cable (br) from the wiring harness for the illuminated door sill molding to the brown cable (br) of the production wiring harness. Using a cable clamping connector, connect the black/red cable (sw/rt) to the grey/black connector (gr/sw)
   Fig 3: Identifying Illuminated Door Sill Molding And Wire

   Courtesy of MERCEDES-BENZ USA

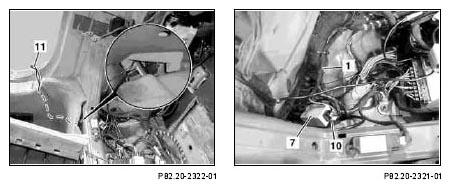

6. Connect converter (7) enclosed with 8pin connector (10) to illuminated door sill molding wiring harness (1). (see right Figure)

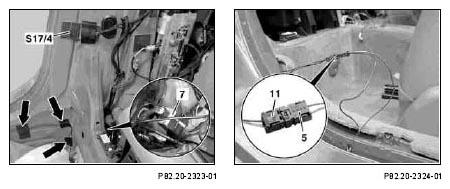

7. Guide branch-off line with 2-pin connector through to the lamp strip (11) under crossmember (see detail in left figure) and guide under the floor covering to the right door.
   Fig 4: Identifying Illuminated Door Sill Molding, Lamp Strip And 8Pin Connector

   Courtesy of MERCEDES-BENZ USA
8. Connect the 2-pin coupling 11) to the mating plug (5) of the lamp strip, secure the cable and the connector (5, 11) with felt strips (see arrows in left Figure).
9. Secure clamp connection at the right door contact switch wiring harness (S17/4) with felt tape to body.
10. Wind felt tape around converter (7) and secure with tie straps to existing wires (see detail).
    Fig 5: Identifying 2-Pin Coupling, Mating Plug And Right Door Contact Switch Wiring Harness

    Courtesy of MERCEDES-BENZ USA

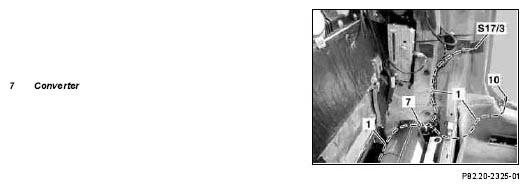

11. Route illuminated door sill molding wiring harness (1) analog to the routing on the right vehicle side to the left door contact switch (S17/3) and secure.
    Fig 6: Identifying Left Door Contact Switch And Door Sill Molding Wiring Harness

    Courtesy of MERCEDES-BENZ USA
12. Tie up standard wiring harness of left door contact switch (S17/3) approx. 60 mm and expose the brown and the two gray/red wires (br, gr/rt).
13. Guide branch-off line with brown and black/red wire (br, sw/rt) from the illuminated door sill molding wiring harness (1) to the left door contact switch (S17/3) and secure to existing wires.

    Both gray/red wires (gr/rt) can be used as desired for the connection to the black/red wire (sw/rt) from the illuminated door sill molding wiring harness (1).

14. Connect both brown wires (br) and one of the gray/black wires (gr/sw) to the black/red wire (sw/rt) using one cable clamp connector each.
    Fig 7: Identifying Illuminated Door Sill Molding Wiring Harness And Left Door Contact Switch

    Courtesy of MERCEDES-BENZ USA

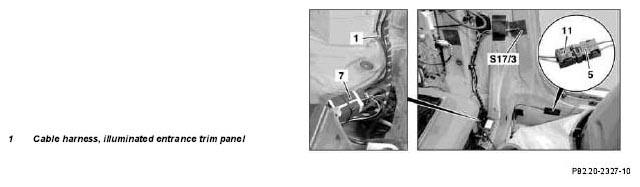

15. Wind felt tape around converter (7) and secure with tie straps to existing wires (see figure cutout).
16. Secure clamp connection at the left door contact switch wiring harness (S17/3) with felt tape to body.
17. Connect 2-pin connector (11) to counter connector (5) of the lamp strip and secure cable with the connector using felt strips according to figure (see detail).
    Fig 8: Identifying Left Door Contact Switch Wiring Harness, 2-Pin Connector And Counter Connector

    Courtesy of MERCEDES-BENZ USA
18. Insert cable lug (40) in fuse holder (60) and insert a 10A fuse.

    If the fuse holder (60) is already assigned, then the red supply line (rt) should be soldered onto the outlet of the fuse holder (60) and a 15 A fuse should be used.

    Fig 9: Identifying Cable Lug In Fuse Holder
