Removal & Installation

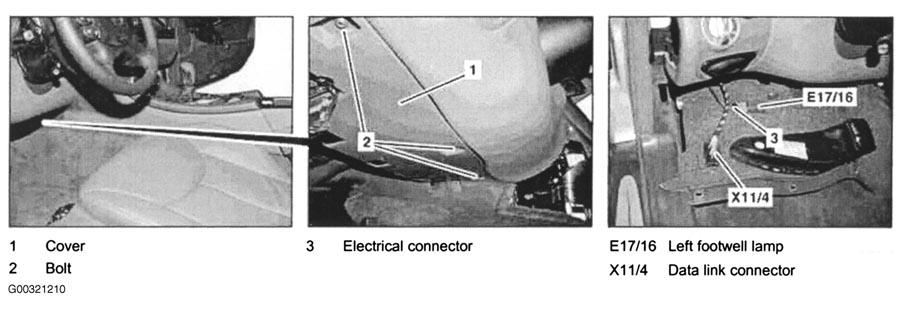

- Remove bolts (2) and push cover down (1). See Fig 1 .
- Separate left footwell lamp (E17/16) electrical connector (3).
- Remove data link connector (X11/4) from cover and remove cover (1) from footwell.
- Installation is the reverse of disassembly.
