Fuel pump relay, location - GF54.15-P-4105-01MM

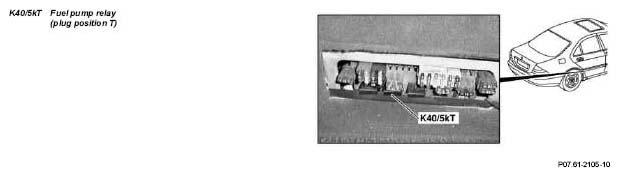

Fig 1: Identifying Fuel Pump Relay (Plug Position T) - Models 215, 220

G04849610
