Fuse And Relay Assignment Of Fuse And Relay Holder In Luggage Compartment - GF54.15-P-1257-10M

Shown On Model 220

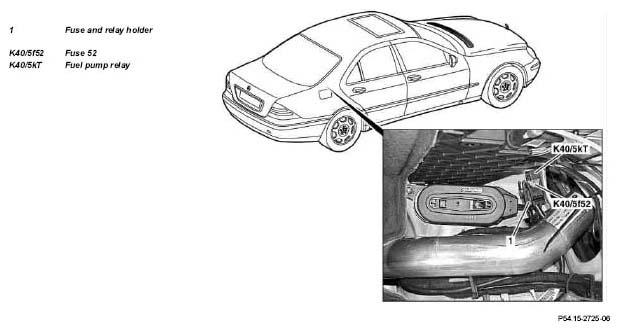

Fig 1: Identifying Fuse And Relay Holder, Fuse 52 And Fuel Pump Relay - Shown On Model 220
G04849607Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fuse Terminal Cable ID (fused line) Fused function Rating in amperes (A)
K40/5f52 30 RD 10.0
  • Fuel pump (M3)
 30
Relay Designation
K40/5kT
  • Fuel pump relay
