Removal & Installation
NOTE:
Letters and numbers in parenthesis correspond to letters and numbers in illustrations.
- Move wiper system to park position by turning wipers ON and OFF.
- Open hood.

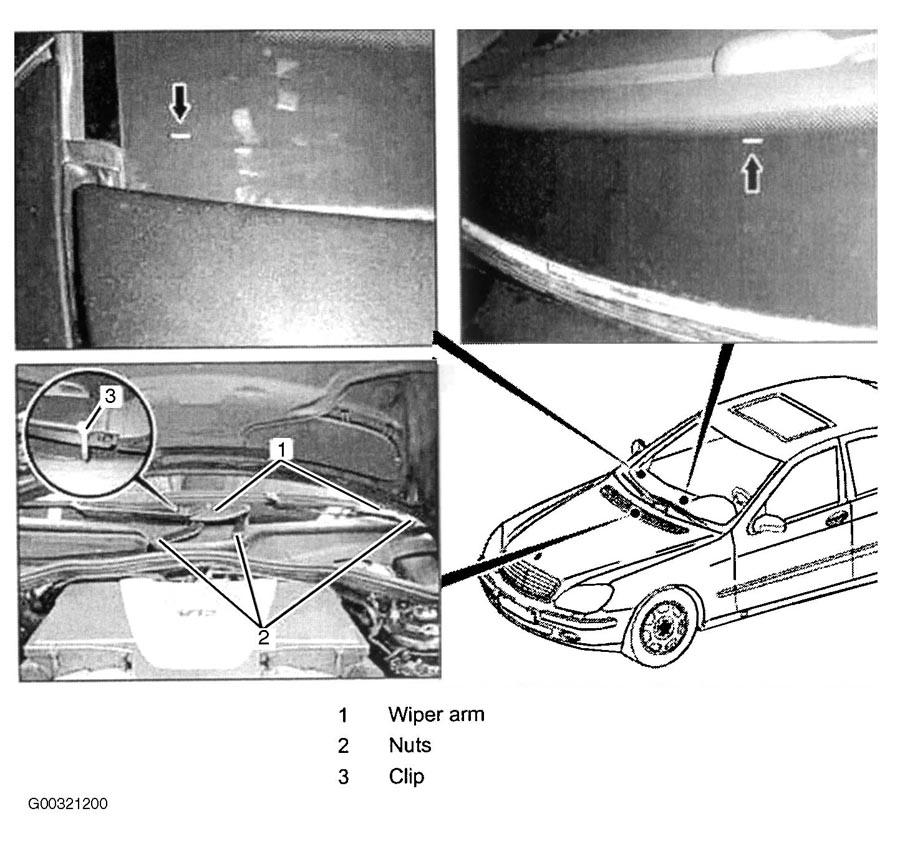

- Remove nuts (2). See Fig 1 .
- Remove wiper arm (1).
- Installation is reverse of removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS .
- During installation, wiper blade must lie directly on marking (arrow) in screen printing of windshield. Clip (3) must be removed when using new wiper blades.
