Telephone/portable CTEL/STH radio remote control antenna splitter, location/task - GF82.70-P-5200S
MODELS 215, 220 as of 1.6.04 with CODE (388) "Portable CTEL" UPCI telephone system
Shown on model 220

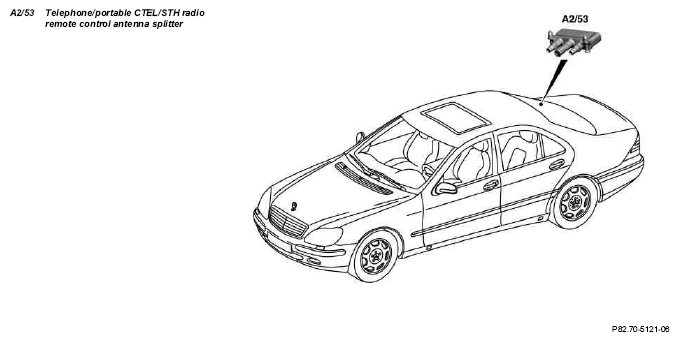

Fig 1: Identifying Telephone/Portable CTEL/STH Radio Remote Control Antenna Splitter Location - Shown On Model 220
| Telephone/portable CTEL/STH radio remote control antenna splitter, location | The telephone/portable CTEL/STH radio remote control antenna splitter (A2/53) is located in the luggage compartment on the right behind the side paneling. | ||
| Telephone/portable CTEL/STH radio remote control antenna splitter, task | The telephone/portable CTEL/STH radio remote control antenna splitter (A2/53) separates the signals for the portable CTEL (A34/6) and the telestart signal for the STH heater unit (A6) with code (228) stationary heater. |
