Retrofitting Telematic cockpit wiring harness - AN82.71-P-1000-08M

Model 220

Connection schematic for Telematic cockpit wiring harness (21)

The Telematic cockpit wiring harness (21) serves for connection of a Telematic compatible taxi two-way radio to the taxi emergency call system.

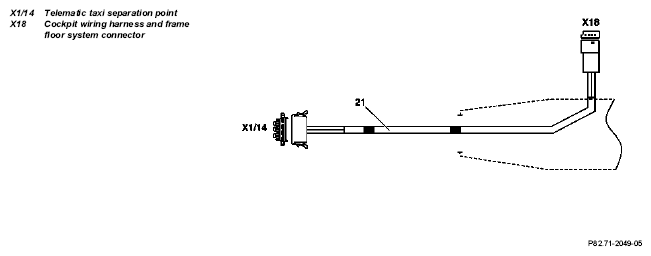

Fig 1: Connection Schematic For Telematic Cockpit Wiring Harness (21)

1. Route Telematic cockpit wiring harness (21) as shown in figure in instrument panel along present leads and fasten with cable strap.
   Fig 2: Identifying Cockpit Wiring Harness And Frame Floor System Connector


2. Connect cockpit wiring harness/frame floor system connector (X18) in front right wiring duct.
   Fig 3: Identifying Cockpit Wiring Harness/Frame Floor System Connector


3. Route Telematic cockpit wiring harness (21) along taxi two-way radio leads through right A-pillar into glove compartment and fasten with cable strap.
4. Position taxi Telematic separation point (X1/14) as shown in figure in area of two-way radio in glove compartment and connect to two-way radio if applicable.

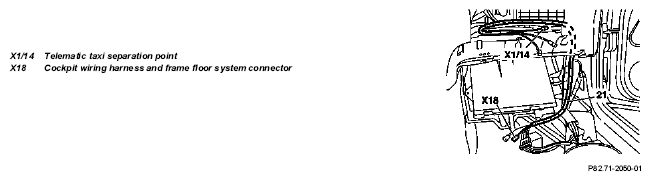

   Fig 4: Identifying Telematic Cockpit Wiring Harness And Taxi Telematic Separation Point
